ESD11B5.0ST5G
TVS DIODE 5VWM 10VC 2DSNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More

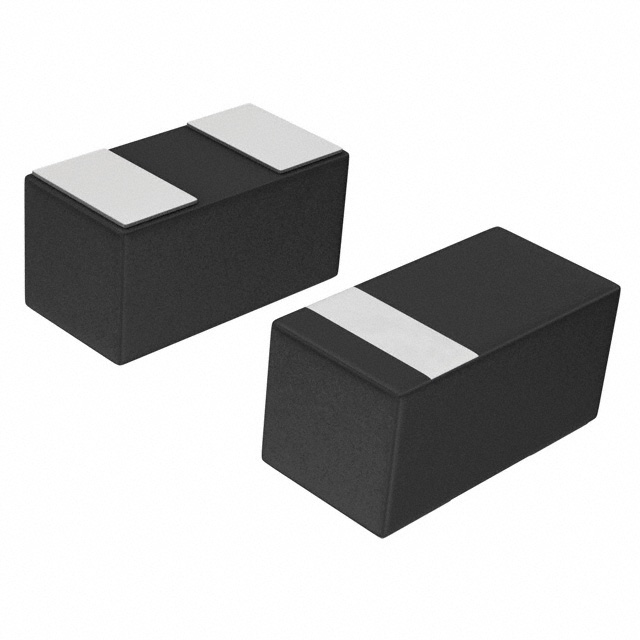

The onsemi ESD11B5-0ST5G is a transient voltage suppressor (TVS) diode designed for robust circuit protection. This bidirectional device offers a reverse standoff voltage of 5V and a breakdown voltage of 5.8V (typical). It provides a maximum clamping voltage of 10V at a peak pulse current of 2A (8/20µs). Featuring a low capacitance rating, it is suitable for high-speed data line protection. The component is housed in a compact 2-DSN (0.60x0.30) package, equivalent to a 0201 (0603 Metric) footprint, facilitating high-density board layouts. This TVS diode is commonly employed in general-purpose applications across consumer electronics, industrial automation, and automotive systems where protection against electrostatic discharge (ESD) and other transient overvoltage events is critical. It is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0201 (0603 Metric) |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 2A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Supplier Device Package | 2-DSN (0.60x0.30) |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 5.8V |
| Voltage - Clamping (Max) @ Ipp | 10V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Grade | - |
| Qualification | - |
