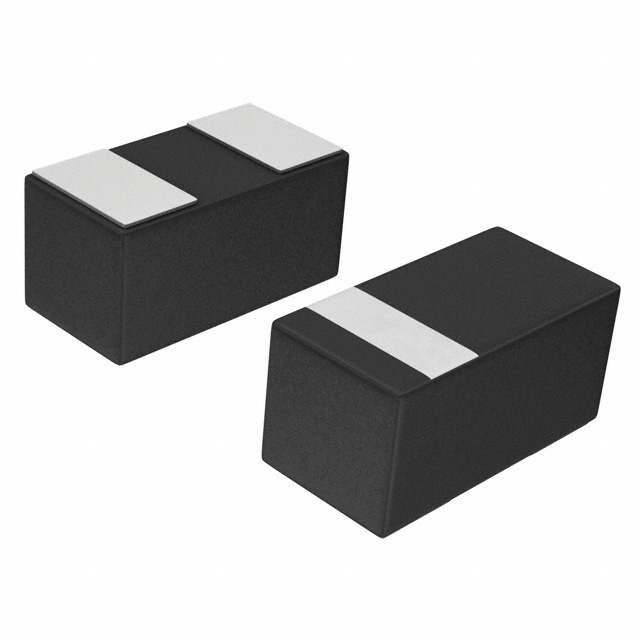

ESD11B5.0SMT5G
TVS DIODE 5VWM 2FLIPCHIPManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi ESD11B5-0SMT5G is a surface mount Transient Voltage Suppressor (TVS) diode designed for robust electrostatic discharge (ESD) protection. Featuring a 5V reverse standoff voltage and a 5.8V minimum breakdown voltage, this component offers effective clamping for sensitive circuitry. Its 2-FlipChip package, delivered on tape and reel, is optimized for automated assembly processes. This TVS diode is suitable for general-purpose applications requiring reliable protection against transient overvoltage events, commonly found in consumer electronics and industrial control systems. The device operates within a temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-XFDFN, FCDFN |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Supplier Device Package | 2-FlipChip |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 5.8V |
| Voltage - Clamping (Max) @ Ipp | - |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Grade | - |
| Qualification | - |
