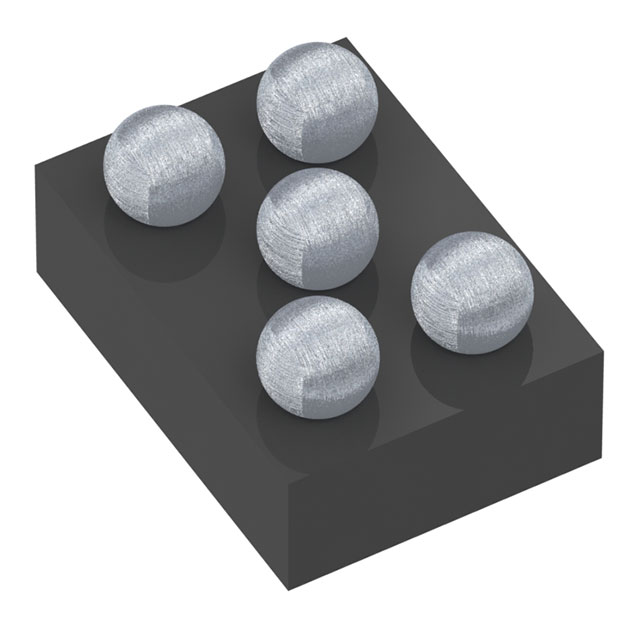

onsemi CSPESD304G is a 15V clamping voltage transient voltage suppressor (TVS) diode designed for robust circuit protection. This component, presented in a compact 5-UFBGA, WLCSP package, offers 4 unidirectional channels, making it suitable for protecting sensitive data lines and power rails. Operating within a temperature range of -40°C to 85°C (TA), it provides reliable protection in demanding environments. The TVS diode features a breakdown voltage of 5.5V (min) and a clamping voltage of 15V at peak pulse current. Its general-purpose applications span across various industries requiring advanced overvoltage protection solutions. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-UFBGA, WLCSP |
| Type | Zener |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | - |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 5.5V |
| Voltage - Clamping (Max) @ Ipp | 15V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Grade | - |
| Qualification | - |
