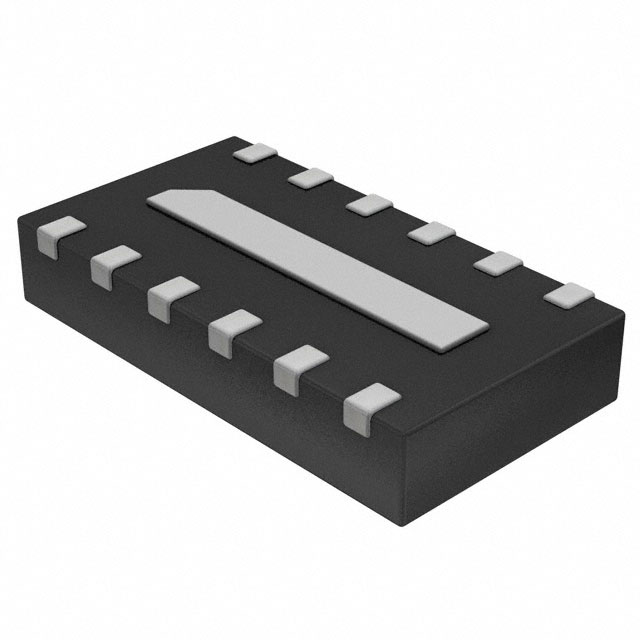

CM1263-06DE
TVS DIODE 3.3VWM 9.96VC 12UDFNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi CM1263-06DE is a 6-channel transient voltage suppressor (TVS) diode designed for robust circuit protection. This surface mount component features a 3.3V reverse standoff voltage and a typical clamping voltage of 9.96V at a peak pulse current of 1A (8/20µs). The device offers steering (rail-to-rail) protection in a compact 12-UDFN (2.5x1.35) package. With a breakdown voltage of 6V (min) and an operating temperature range of -40°C to 85°C, the CM1263-06DE is suitable for power line protection applications across various industries requiring compact and reliable transient suppression. It is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Steering (Rail to Rail) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 3.3V |
| Supplier Device Package | 12-UDFN (2.5x1.35) |
| Unidirectional Channels | 6 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 9.96V (Typ) |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
| Grade | - |
| Qualification | - |
