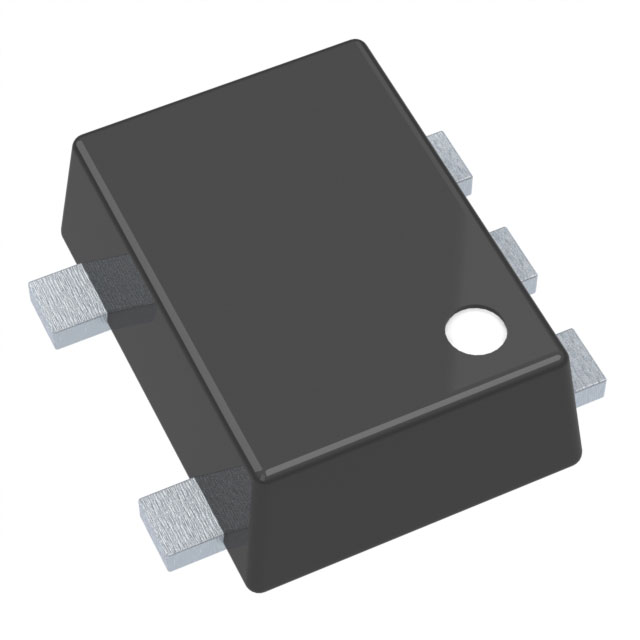

CM1248-04S9
TVS DIODE 6.1VWM 6.8VC SOT953Manufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi CM1248-04S9 is a transient voltage suppressor (TVS) diode designed for robust protection. This component features a 6.1V reverse standoff voltage and a typical clamping voltage of 6.8V. It is housed in a compact SOT-953 surface mount package, suitable for space-constrained applications. The CM1248-04S9 offers four unidirectional protection channels, ideal for safeguarding sensitive circuitry in consumer electronics, industrial control systems, and automotive applications where transient overvoltage events can occur. Manufactured by onsemi, this TVS diode provides reliable protection against voltage spikes.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-953 |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 6.1V (Min) |
| Supplier Device Package | SOT-953 |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 6.8V (Typ) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Grade | - |
| Qualification | - |
