CM1241-04D4
TVS DIODE 8.2VWM 9.64VC 8-WDFNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More

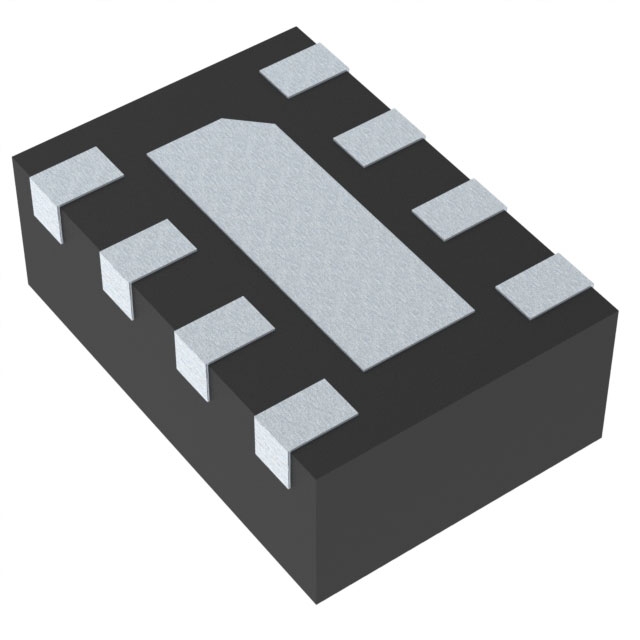

The onsemi CM1241-04D4 is a transient voltage suppressor (TVS) diode designed for robust protection in demanding applications. Featuring four steering diodes, this component offers rail-to-rail protection and is housed in a compact 8-WDFN (1.7x1.35) package, supplied on tape and reel. With a reverse standoff voltage of 8.2V and a typical clamping voltage of 9.64V at a peak pulse current of 1A (8/20µs), the CM1241-04D4 effectively safeguards sensitive circuitry from voltage transients. Its surface mount configuration and operating temperature range of -40°C to 85°C make it suitable for general-purpose applications across various industries, including consumer electronics and industrial automation. The device provides power line protection, ensuring the integrity of connected systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Steering (Rail to Rail) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 8.2V |
| Supplier Device Package | 8-WDFN (1.7x1.35) |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 9.64V (Typ) |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
| Grade | - |
| Qualification | - |
