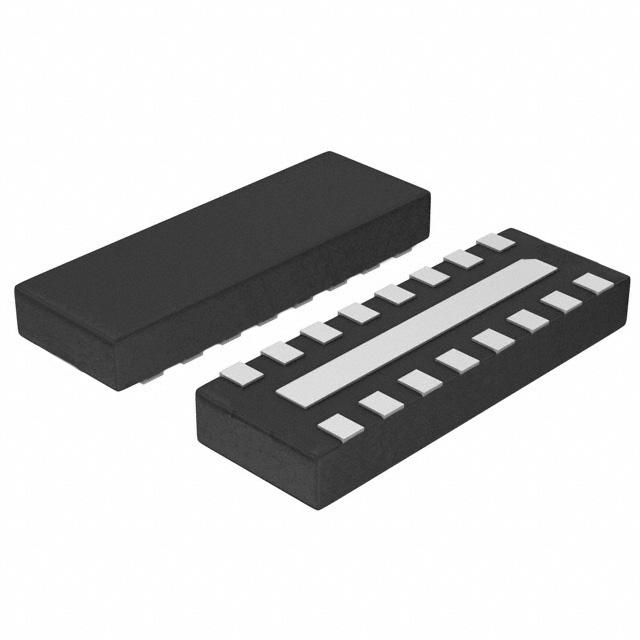

CM1235-08DE
TVS DIODE 5.5VWM 9.2VC 16WDFNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi CM1235-08DE is a surface mount TVS diode designed for general-purpose protection applications. This steering diode array features 8 unidirectional channels, providing rail-to-rail protection with a reverse standoff voltage of 5.5V (Max). The device exhibits a typical breakdown voltage of 6V and a clamping voltage of 9.2V at a peak pulse current of 1A (8/20µs). With a peak pulse power rating (not specified, but implied by context) and operating temperature range of -40°C to 85°C, the CM1235-08DE is housed in a compact 16-WFDFN exposed pad package, measuring 4x1.7mm. This component is suitable for power line protection and is delivered on tape and reel.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Steering (Rail to Rail) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Supplier Device Package | 16-WDFN (4x1.7) |
| Unidirectional Channels | 8 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 9.2V (Typ) |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
| Grade | - |
| Qualification | - |
