CM1234-08DE
TVS DIODE 5.5VWM 9VC 16WDFNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More

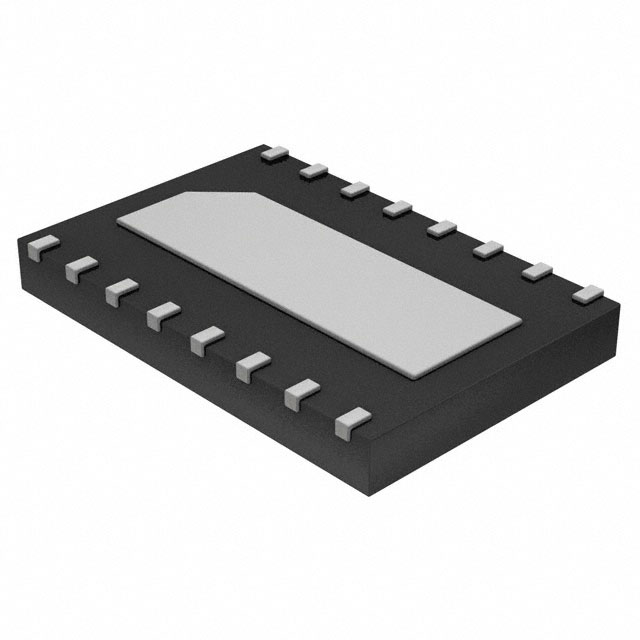

The onsemi CM1234-08DE is a surface mount TVS Diode designed for robust transient voltage suppression. Featuring 8 unidirectional channels, this component provides steering (rail-to-rail) protection with a 5.5V reverse standoff voltage. The CM1234-08DE exhibits a typical breakdown voltage of 6V and a clamping voltage of 9V at a peak pulse current of 1A (8/20µs). Its 16-WDFN (6x4) exposed pad package ensures efficient thermal dissipation. This device is suitable for demanding applications, including HDMI interfaces, and operates across a temperature range of -40°C to 85°C. It is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Steering (Rail to Rail) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | HDMI |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Supplier Device Package | 16-WDFN (6x4) |
| Unidirectional Channels | 8 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 9V (Typ) |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
| Grade | - |
| Qualification | - |
