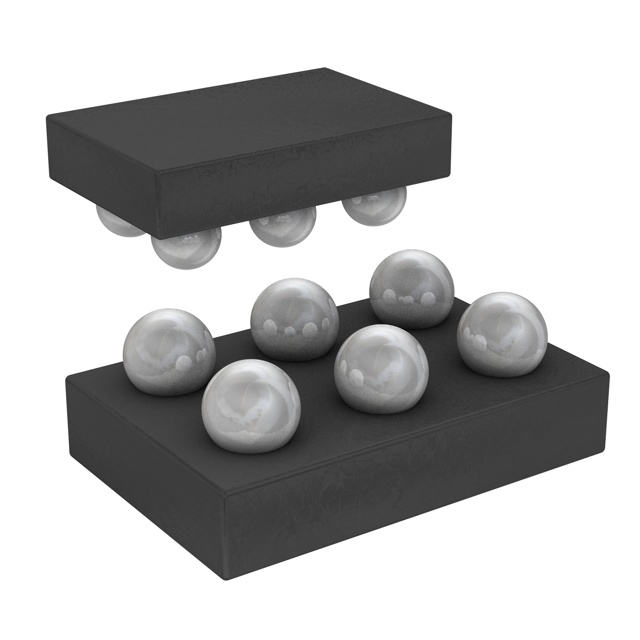

CM1230-04CP
TVS DIODE 3.3VWM 9.8VC 6WLCSPManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi CM1230-04CP is a transient voltage suppression (TVS) diode designed for robust protection. This component features a 3.3V reverse standoff voltage and a 9.8V clamping voltage at a peak pulse current of 1A (8/20µs). With four unidirectional channels and a steering (rail to rail) configuration, it offers comprehensive protection for sensitive circuitry. The device is housed in a compact 6-WLCSP (1.46x0.96) package, suitable for surface mount applications. Operating across a temperature range of -40°C to 85°C, the CM1230-04CP is commonly utilized in general-purpose applications requiring reliable power line protection. This component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Type | Steering (Rail to Rail) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 3.3V |
| Supplier Device Package | 6-WLCSP (1.46x0.96) |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 9.8V (Typ) |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
| Grade | - |
| Qualification | - |
