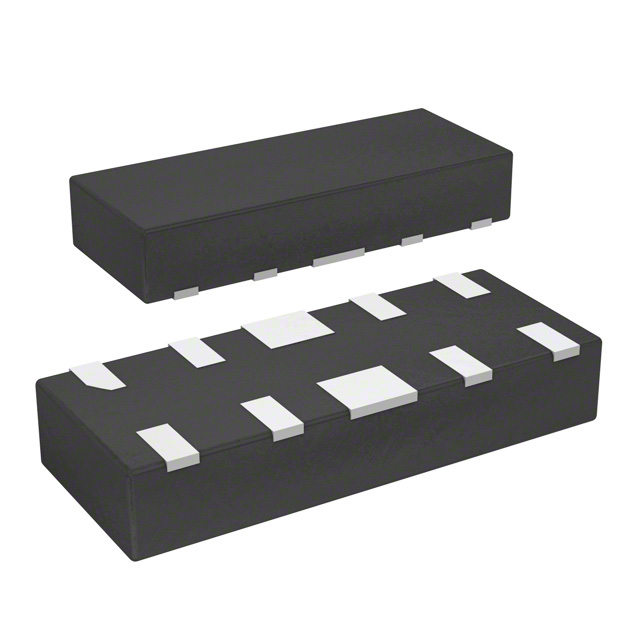

CM1225-04DE
TVS DIODE 10VC 10UDFNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
onsemi CM1225-04DE, a TVS Diode, offers robust transient voltage suppression. This steering diode array features a nominal clamping voltage of 10V with a peak pulse current capability of 1A (8/20µs). Designed for surface mount applications, it is housed in a compact 10-UDFN (2.5x1) package and supplied on tape and reel. The CM1225-04DE is suitable for power line protection and general-purpose applications across various industries, operating within a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-UFDFN |
| Mounting Type | Surface Mount |
| Type | Steering (Rail to Rail) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | - |
| Supplier Device Package | 10-UDFN (2.5x1) |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 10V (Typ) |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
| Grade | - |
| Qualification | - |
