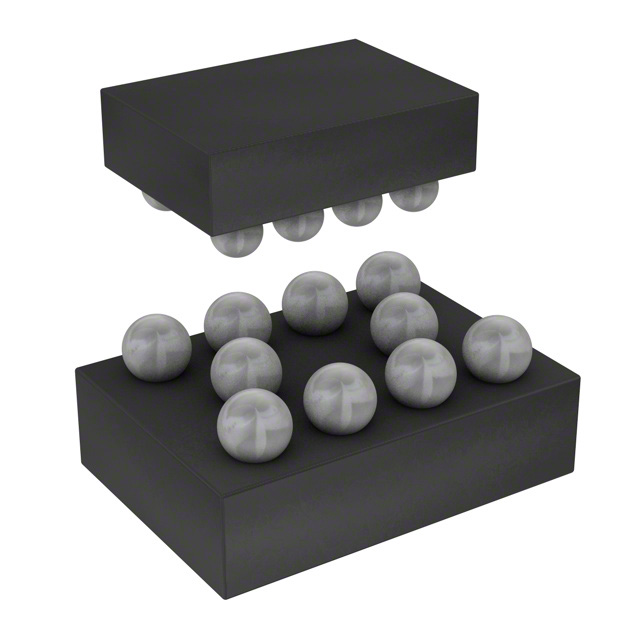

The onsemi CM1220-08CP is an 8-line transient voltage suppressor (TVS) diode designed for surface mount applications. This component, packaged in a compact 10-WLCSP (1.96x1.33mm), offers robust protection with a clamping voltage of 9V. Engineered for operational temperatures ranging from -40°C to 85°C, the CM1220-08CP is suitable for general-purpose applications across various industries, including consumer electronics and industrial automation where safeguarding sensitive circuitry from voltage transients is critical. Its 10-WLCSP package facilitates high-density board designs.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | - |
| Supplier Device Package | 10-WLCSP (1.96x1.33) |
| Unidirectional Channels | 8 |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 9V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Grade | - |
| Qualification | - |
