CM1215-02SO
TVS DIODE 4.8VC SOT23-5Manufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More

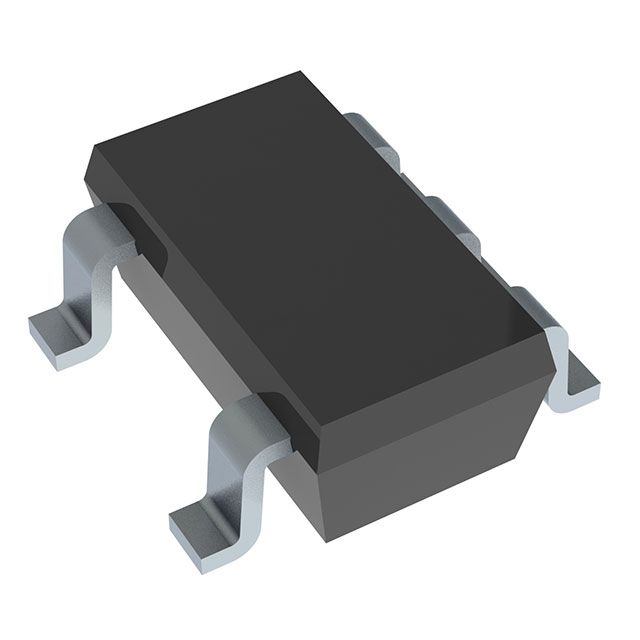

The onsemi CM1215-02SO is a TVS Diode designed for transient voltage suppression. This device features a typical clamping voltage of 4.8V and a peak pulse current rating of 1A for an 8/20µs waveform. It is configured with two unidirectional channels, offering rail-to-rail steering protection. The CM1215-02SO is housed in a SOT-23-5 package and is supplied on tape and reel. Operating across a temperature range of -40°C to 125°C, this component is suitable for general-purpose applications with its surface mount capability.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Mounting Type | Surface Mount |
| Type | Steering (Rail to Rail) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | - |
| Supplier Device Package | SOT-23-5 |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 4.8V (Typ) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Grade | - |
| Qualification | - |
