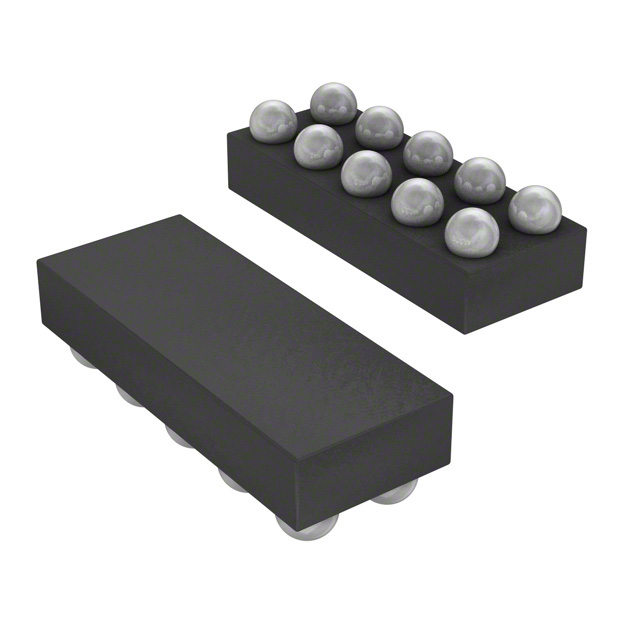

CM1205-08CP
TVS DIODE 3.3VWM 8VC 10WLCSPManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
onsemi CM1205-08CP is a transient voltage suppressor (TVS) diode designed for robust protection. This 10-WLCSP package device offers an 8V clamping voltage at a peak pulse current (Ipp) and a reverse standoff voltage of 3.3V. Featuring 8 unidirectional channels, it provides comprehensive protection against voltage transients. The surface mount configuration and 10-WLCSP (3.1x1.15) package are suitable for high-density board layouts. Operating across a temperature range of -40°C to 85°C (TA), this component finds application in general-purpose protection circuits within the consumer electronics and telecommunications industries.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Supplier Device Package | 10-WLCSP (3.1x1.15) |
| Unidirectional Channels | 8 |
| Voltage - Breakdown (Min) | 5.6V |
| Voltage - Clamping (Max) @ Ipp | 8V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Grade | - |
| Qualification | - |
