1SMA5.0AT3
TVS DIODE 5VWM 9.2VC SMAManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More

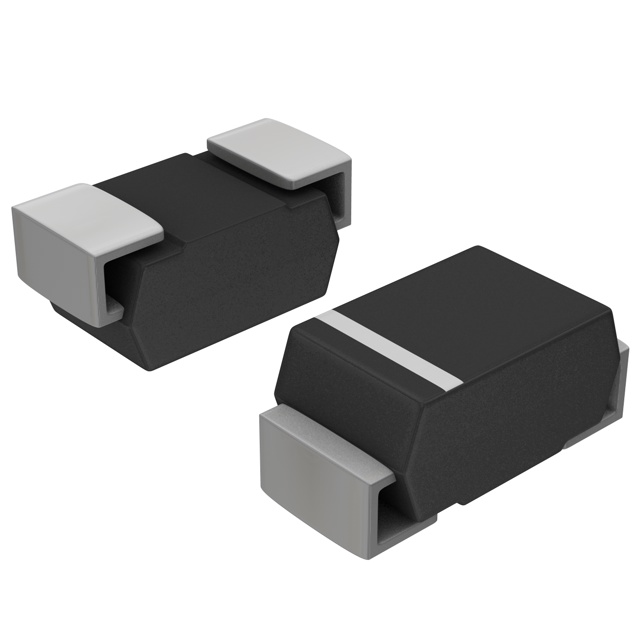

The onsemi 1SMA5-0AT3 is a transient voltage suppressor (TVS) diode in a DO-214AC, SMA surface mount package. Designed for general-purpose applications, this unidirectional TVS diode offers a standoff voltage of 5V and a breakdown voltage of 6.4V (minimum). It features a maximum clamping voltage of 9.2V at a peak pulse current of 43.5A (10/1000µs). The device provides 400W of peak pulse power dissipation. Operating temperature ranges from -65°C to 150°C. This component is commonly utilized in automotive and industrial electronics for overvoltage protection. Capacitance is specified at 2035pF at 1MHz. The 1SMA5-0AT3 is supplied on tape and reel.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AC, SMA |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 2035pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 43.5A |
| Voltage - Reverse Standoff (Typ) | 5V |
| Supplier Device Package | SMA |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 6.4V |
| Voltage - Clamping (Max) @ Ipp | 9.2V |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Grade | - |
| Qualification | - |
