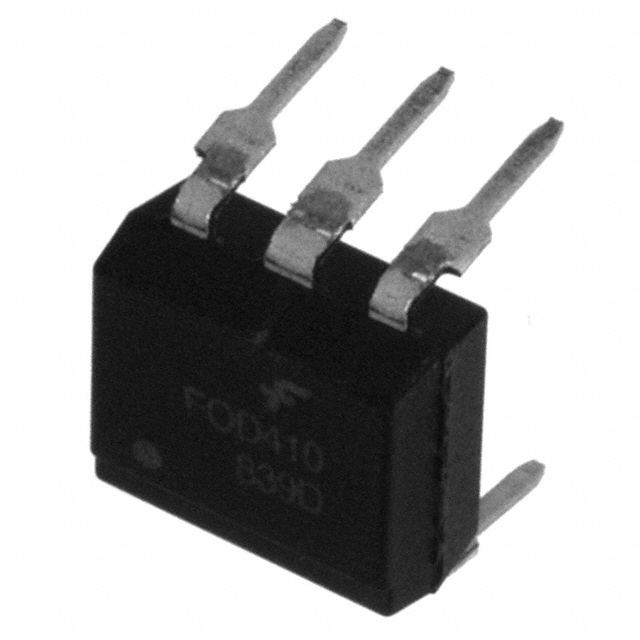

FOD410
OPTOISOLATOR 5KV TRIAC 6DIPManufacturer: onsemi
Categories: Triac, SCR Output Optoisolators
Quality Control: Learn More
Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-DIP (0.300"", 7.62mm) |
| Output Type | Triac |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Voltage - Isolation | 5000Vrms |
| Approval Agency | CSA, UL |
| Current - Hold (Ih) | 500µA |
| Turn On Time | 60µs |
| Supplier Device Package | 6-DIP |
| Zero Crossing Circuit | Yes |
| Static dV/dt (Min) | 10kV/µs |
| Current - LED Trigger (Ift) (Max) | 2mA |
| Number of Channels | 1 |
| Voltage - Off State | 600 V |
| Current - DC Forward (If) (Max) | 30 mA |
