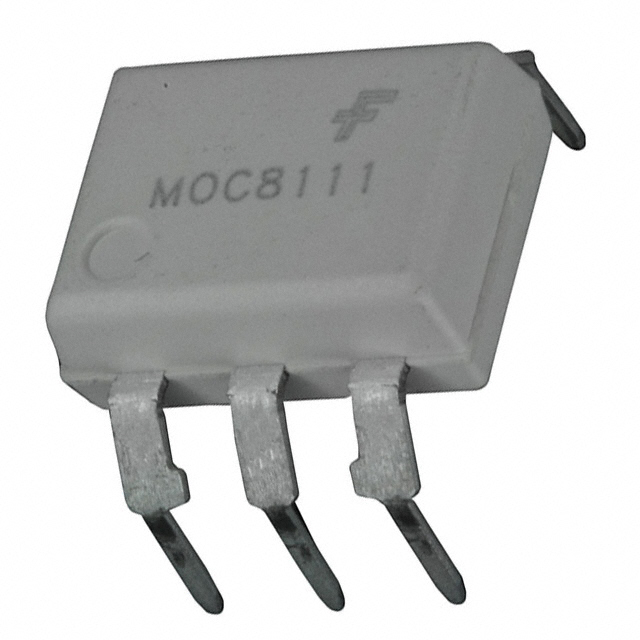

MOC8111TM
OPTOISOLATOR 7.5KV TRANS 6-DIPManufacturer: onsemi
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
The onsemi MOC8111TM is a single-channel, through-hole optoisolator featuring a transistor output. This component provides 7500Vpk isolation, making it suitable for applications requiring robust electrical separation. It operates with a DC input and has a typical forward voltage of 1.15V and a maximum forward current of 90mA. The output transistor offers a minimum current transfer ratio of 20% at 10mA and a saturation voltage of 400mV. Typical turn-on and turn-off times are 3µs and 18µs, respectively, with rise and fall times of 2µs and 11µs. The device is housed in a 6-DIP package and operates within a temperature range of -40°C to 100°C. Common industry applications include power supplies, industrial controls, and telecommunications equipment.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 6-DIP (0.400"", 10.16mm) |
| Output Type | Transistor |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Input Type | DC |
| Current - Output / Channel | - |
| Voltage - Isolation | 7500Vpk |
| Current Transfer Ratio (Min) | 20% @ 10mA |
| Vce Saturation (Max) | 400mV |
| Current Transfer Ratio (Max) | - |
| Supplier Device Package | 6-DIP |
| Voltage - Output (Max) | 70V |
| Turn On / Turn Off Time (Typ) | 3µs, 18µs |
| Rise / Fall Time (Typ) | 2µs, 11µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 90 mA |
