MCT4R
OPTOISO 1KV TRANSISTOR TO206AAManufacturer: onsemi
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More

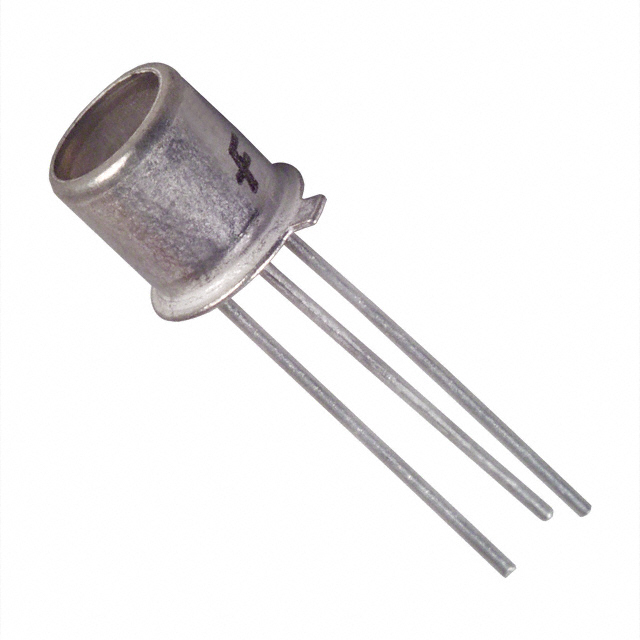

The onsemi MCT4R is a single-channel optoisolator featuring a transistor output. This component provides 1000VDC isolation and is housed in a TO-206AA (TO-18-3 Metal Can) package, facilitating through-hole mounting. It operates with a DC input type and offers a minimum current transfer ratio of 15% at 10mA forward current, with a maximum DC forward current of 40mA. The output is a transistor capable of handling up to 30V with a maximum Vce saturation of 500mV. The typical forward voltage (Vf) is 1.3V. This device is suitable for applications requiring electrical isolation in industrial automation, power control, and telecommunications systems. It is designed for operation across a temperature range of -55°C to 125°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | |
| Package / Case | TO-206AA, TO-18-3 Metal Can |
| Output Type | Transistor |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Input Type | DC |
| Current - Output / Channel | - |
| Voltage - Isolation | 1000VDC |
| Current Transfer Ratio (Min) | 15% @ 10mA |
| Vce Saturation (Max) | 500mV |
| Current Transfer Ratio (Max) | - |
| Supplier Device Package | TO-18 |
| Voltage - Output (Max) | 30V |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | - |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 40 mA |
