HMHA281V
OPTOISO 3.75KV TRANSISTOR 4SMDManufacturer: onsemi
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More

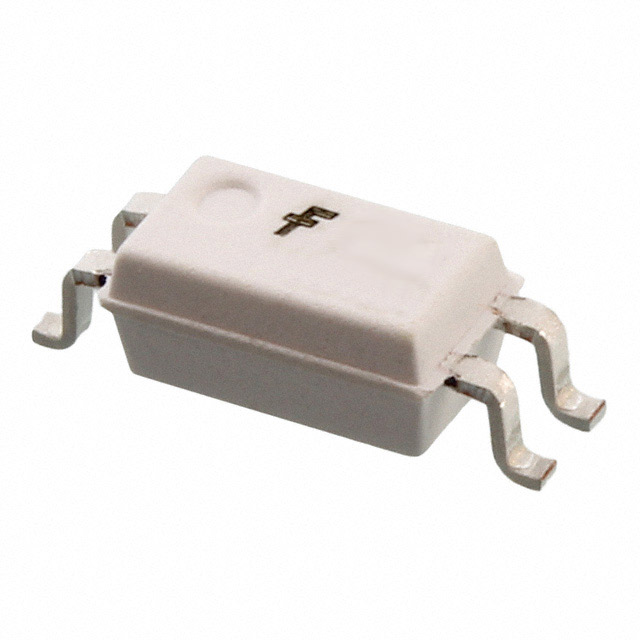

The onsemi HMHA281V is a single-channel optoisolator featuring a transistor output. This component provides 3750Vrms of isolation and is housed in a 4-Mini-Flat package suitable for surface mounting. Key electrical specifications include a maximum forward current of 50 mA, an output current capability of 50 mA per channel, and a wide current transfer ratio range from 50% to 600%. The device operates with a DC input type, a typical forward voltage of 1.3V, and a saturation voltage of 400mV. It has an output voltage rating of 80V and exhibits typical rise and fall times of 3µs. Operating temperature ranges from -55°C to 100°C. This optoisolator is commonly utilized in industrial automation, power supply control, and telecommunications equipment.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | 4-SOIC (0.173"", 4.40mm Width) |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.3V (Max) |
| Input Type | DC |
| Current - Output / Channel | 50mA |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Vce Saturation (Max) | 400mV |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Supplier Device Package | 4-Mini-Flat |
| Voltage - Output (Max) | 80V |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 3µs, 3µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 50 mA |
