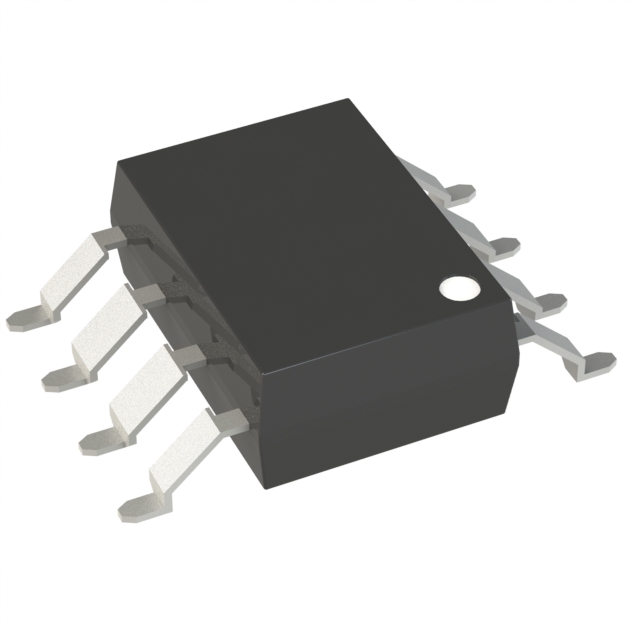

HCPL4503TSR2VM
HI-SPEED TRANSISTOR 8-PIN SMD VDManufacturer: onsemi
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
Optoisolator Transistor with Base Output 5000Vrms 1 Channel 8-DIP Gull Wing
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Gull Wing |
| Output Type | Transistor with Base |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.45V |
| Input Type | DC |
| Current - Output / Channel | 8mA |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 19% @ 16mA |
| Vce Saturation (Max) | - |
| Current Transfer Ratio (Max) | 50% @ 16mA |
| Supplier Device Package | 8-DIP Gull Wing |
| Voltage - Output (Max) | 20V |
| Turn On / Turn Off Time (Typ) | 250ns, 260ns |
| Rise / Fall Time (Typ) | - |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 25 mA |
