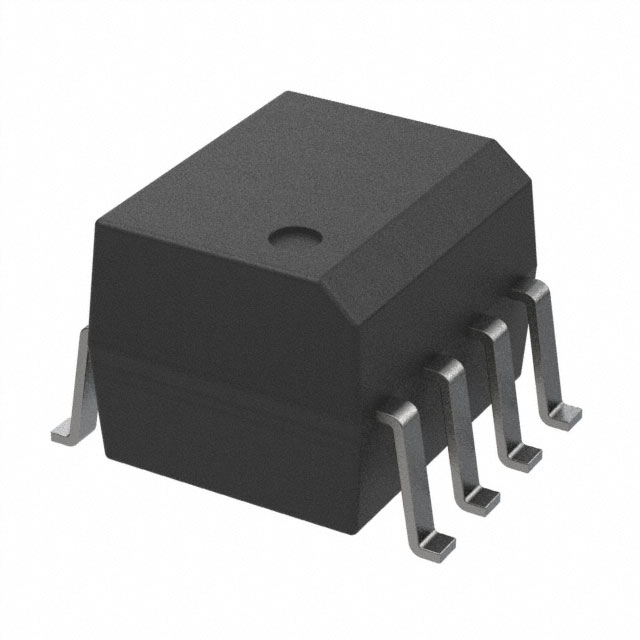

HCPL0731R2
OPTOCOUPLER DARL 2CHAN 8SOICManufacturer: onsemi
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
Optoisolator Darlington Output 2500Vrms 2 Channel 8-SOIC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | Darlington |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Forward (Vf) (Typ) | 1.35V |
| Input Type | DC |
| Current - Output / Channel | 60mA |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 400% @ 500µA |
| Vce Saturation (Max) | - |
| Current Transfer Ratio (Max) | 5000% @ 500µA |
| Supplier Device Package | 8-SOIC |
| Voltage - Output (Max) | 18V |
| Turn On / Turn Off Time (Typ) | 300ns, 1.6µs |
| Rise / Fall Time (Typ) | - |
| Number of Channels | 2 |
| Current - DC Forward (If) (Max) | 20 mA |
