H11B815S
OPTOISOLATOR 5KV DARLINGTON 4SMDManufacturer: onsemi
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More

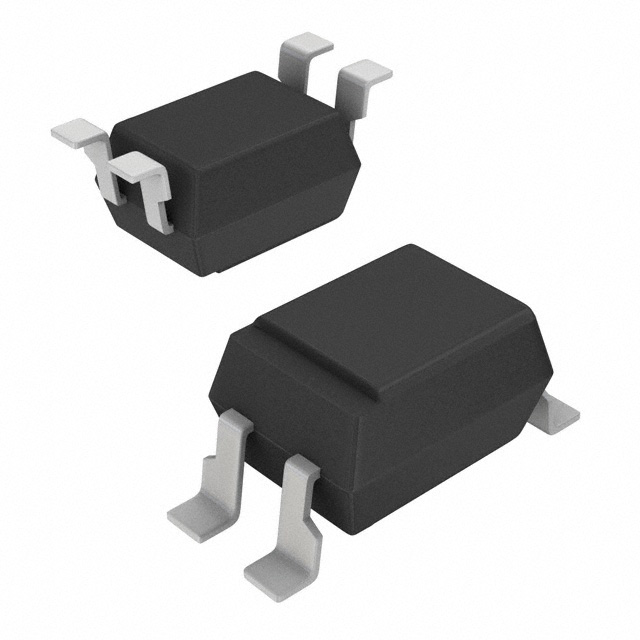

The onsemi H11B815S is a single-channel optoisolator featuring a Darlington output. This device provides 5000Vrms of isolation, crucial for applications requiring high voltage separation. It is designed for surface mounting in a 4-SMD, Gull Wing package, suitable for automated assembly. The input accepts DC signals with a typical forward voltage of 1.2V and a maximum forward current of 50mA. The output stage offers a maximum output current of 80mA and a saturation voltage of 1V. It boasts a high current transfer ratio, ranging from 600% to 7500% at 1mA input. Typical rise and fall times are 300µs and 250µs, respectively. This component is utilized in industrial automation, power supplies, and telecommunications equipment.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 4-SMD, Gull Wing |
| Output Type | Darlington |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Input Type | DC |
| Current - Output / Channel | 80mA |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 600% @ 1mA |
| Vce Saturation (Max) | 1V |
| Current Transfer Ratio (Max) | 7500% @ 1mA |
| Supplier Device Package | 4-SMD |
| Voltage - Output (Max) | 35V |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 300µs, 250µs (Max) |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 50 mA |
