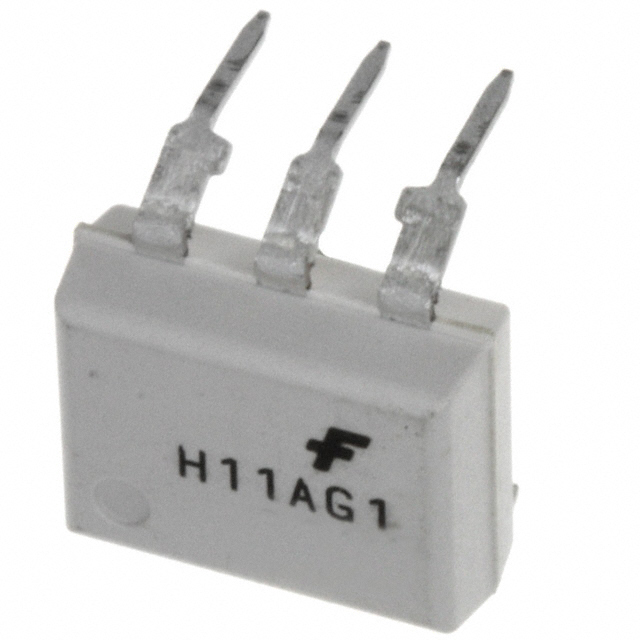

H11AG1TVM
OPTOISO 4.17KV TRANS W/BASE 6DIPManufacturer: onsemi
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-DIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 6-DIP (0.400"", 10.16mm) |
| Output Type | Transistor with Base |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Input Type | DC |
| Current - Output / Channel | 50mA |
| Voltage - Isolation | 4170Vrms |
| Current Transfer Ratio (Min) | 100% @ 1mA |
| Vce Saturation (Max) | 400mV |
| Current Transfer Ratio (Max) | - |
| Supplier Device Package | 6-DIP |
| Voltage - Output (Max) | 30V |
| Turn On / Turn Off Time (Typ) | 5µs, 5µs |
| Rise / Fall Time (Typ) | - |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 50 mA |
