FODM452R1V
OPTOISO 3.75KV TRANSISTOR 5MFPManufacturer: onsemi
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More

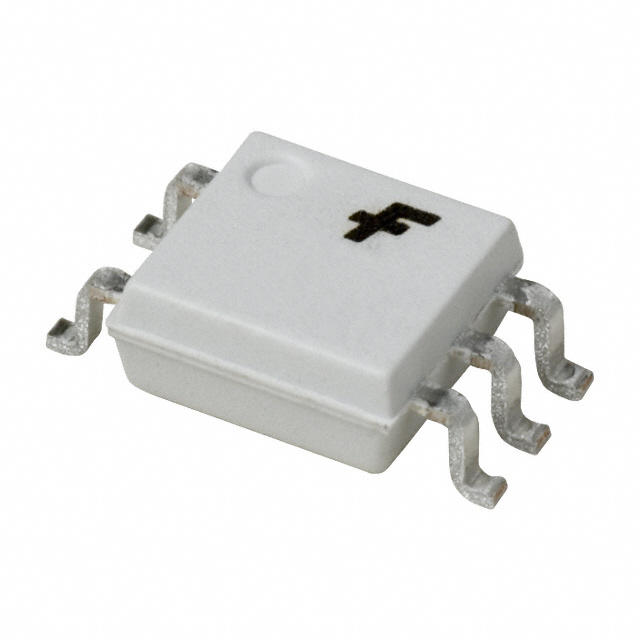

onsemi FODM452R1V is a single-channel optoisolator featuring a transistor output. This device provides 3750Vrms isolation and is housed in a 5-Mini-Flat package, equivalent to a 6-SOIC (0.173", 4.40mm Width) with 5 leads. It operates with a DC input and supports surface mount installation. The FODM452R1V has a typical forward voltage (Vf) of 1.6V and a maximum forward current (If) of 25 mA. The output current per channel is rated at 8mA. Current transfer ratios range from a minimum of 20% at 16mA to a maximum of 50% at 16mA. Turn-on and turn-off times are specified at 400ns and 350ns respectively. This component is suitable for applications requiring electrical isolation in industrial, medical, and automotive sectors. It operates within a temperature range of -40°C to 85°C and is supplied on tape and reel.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SOIC (0.173"", 4.40mm Width), 5 Leads |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Input Type | DC |
| Current - Output / Channel | 8mA |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 20% @ 16mA |
| Vce Saturation (Max) | - |
| Current Transfer Ratio (Max) | 50% @ 16mA |
| Supplier Device Package | 5-Mini-Flat |
| Voltage - Output (Max) | 20V |
| Turn On / Turn Off Time (Typ) | 400ns, 350ns |
| Rise / Fall Time (Typ) | - |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 25 mA |
