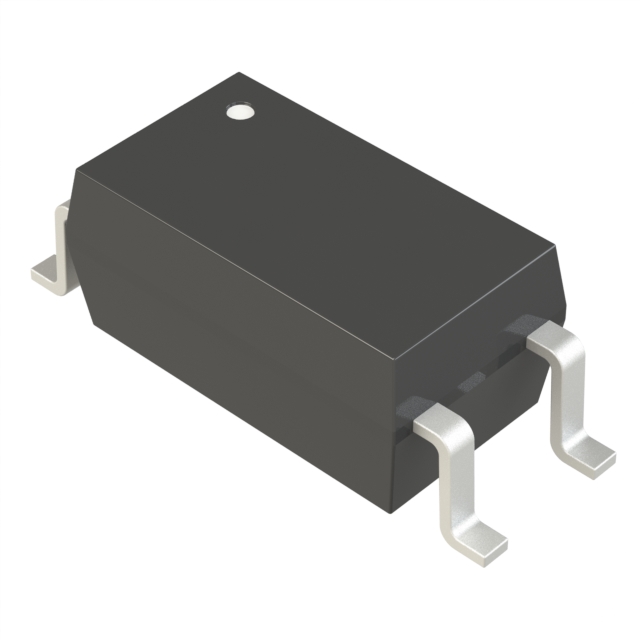

FODM217AR2
4 PIN TRANSISTOR OUTPUT MFPManufacturer: onsemi
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP
Additional Information
Series: FODM217RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SOIC (0.173"", 4.40mm Width) |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 110°C |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Input Type | DC |
| Current - Output / Channel | 50mA |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 80% @ 5mA |
| Vce Saturation (Max) | 400mV |
| Current Transfer Ratio (Max) | 160% @ 5mA |
| Supplier Device Package | 4-SOP |
| Voltage - Output (Max) | 80V |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Rise / Fall Time (Typ) | 2µs, 3µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 50 mA |
