FODM121AR4
4SO TR T&RManufacturer: onsemi
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More

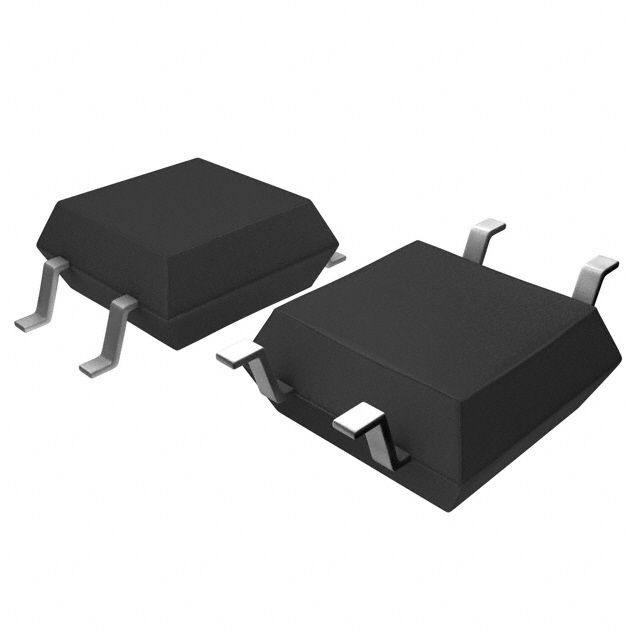

The onsemi FODM121AR4 is a single-channel optoisolator featuring a transistor output. This component provides 3750Vrms isolation and is supplied in a 4-SMD, Gull Wing package suitable for surface mounting. It operates with a typical forward voltage of 1.3V and a maximum forward current of 50mA. The output current capability is up to 80mA. Current transfer ratios range from a minimum of 100% at 5mA to a maximum of 300% at 5mA. Rise and fall times are typically 3µs. This device is utilized in industrial automation and power supply applications. It is available in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 110°C |
| Voltage - Forward (Vf) (Typ) | 1.3V (Max) |
| Input Type | DC |
| Current - Output / Channel | 80mA |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 100% @ 5mA |
| Vce Saturation (Max) | 400mV |
| Current Transfer Ratio (Max) | 300% @ 5mA |
| Supplier Device Package | 4-SMD |
| Voltage - Output (Max) | 80V |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 3µs, 3µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 50 mA |
