FODB101
OPTOISO 2.5KV TRANSISTOR 4BGAManufacturer: onsemi
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
onsemi's Microcoupler™ FODB101 is a single-channel optoisolator featuring a transistor output. This device provides 2500Vrms isolation and is housed in a compact 4-BGA (3.5x3.5) package, suitable for surface mount applications. It operates with a DC input and delivers a current of up to 50mA per channel. The FODB101 exhibits a minimum current transfer ratio of 100% at 1mA, with typical rise and fall times of 1µs and 5µs respectively. Turn-on and turn-off times are typically 3µs and 5µs. The maximum Vce saturation is 400mV, and the typical forward voltage (Vf) is 1.5V. This component finds application in industries requiring robust signal isolation, such as industrial automation and power control systems. The device is supplied on tape and reel.
Additional Information
Series: Microcoupler™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-TEBGA |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Forward (Vf) (Typ) | 1.5V (Max) |
| Input Type | DC |
| Current - Output / Channel | 50mA |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 100% @ 1mA |
| Vce Saturation (Max) | 400mV |
| Current Transfer Ratio (Max) | - |
| Supplier Device Package | 4-BGA (3.5x3.5) |
| Voltage - Output (Max) | 75V |
| Turn On / Turn Off Time (Typ) | 3µs, 5µs |
| Rise / Fall Time (Typ) | 1µs, 5µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 30 mA |
Request a Quote
Clients Also Buy

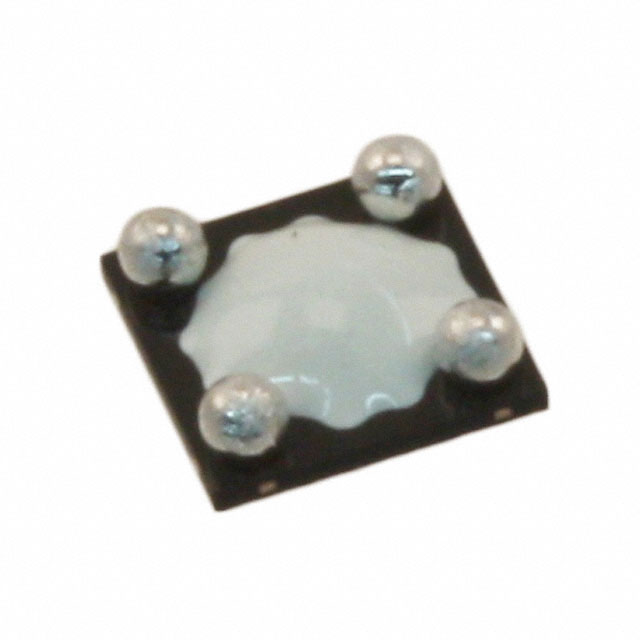

FODB100
OPTOISO 2.5KV TRANSISTOR 4BGA
FODB100V
OPTOISO 2.5KV TRANSISTOR 4BGA

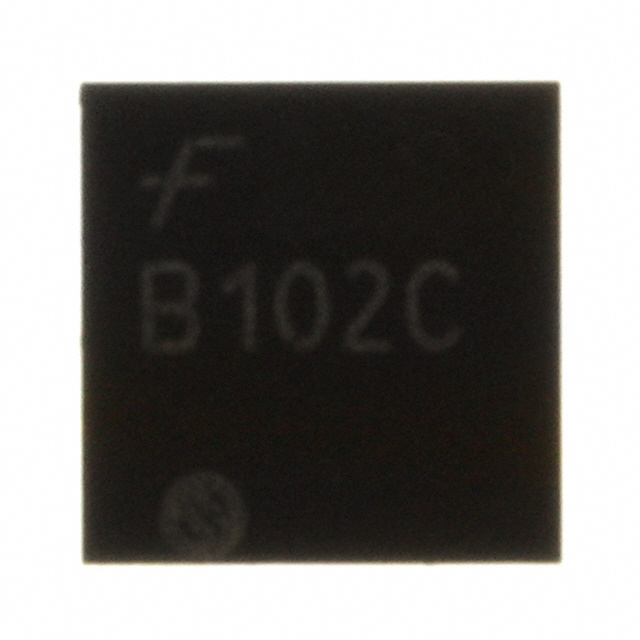

FODB102
