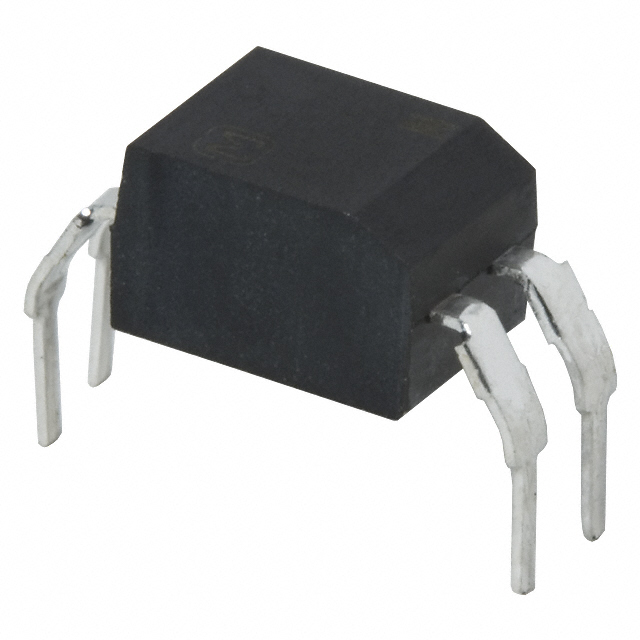

FOD817AW
OPTOISOLATOR 5KV TRANSISTOR 4DIPManufacturer: onsemi
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
The onsemi FOD817AW is a high-reliability optocoupler featuring a transistor output. This component provides 5000Vrms of isolation, making it suitable for applications requiring robust electrical separation. It operates with a DC input and delivers a current output of up to 50mA, with a maximum forward current (If) of 50mA. The current transfer ratio (CTR) ranges from a minimum of 80% at 5mA to a maximum of 160% at 5mA.
Designed for through-hole mounting, the FOD817AW is housed in a standard 4-DIP package. Key electrical parameters include a typical forward voltage (Vf) of 1.2V and a maximum collector-emitter saturation voltage (Vce Sat) of 200mV. The output can handle up to 70V. Typical rise and fall times are 4µs and 3µs, respectively. This optocoupler is engineered for operation across a wide temperature range of -55°C to 110°C and finds application in industrial automation, power supplies, and telecommunications equipment.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | 4-DIP (0.400"", 10.16mm) |
| Output Type | Transistor |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 110°C |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Input Type | DC |
| Current - Output / Channel | 50mA |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 80% @ 5mA |
| Vce Saturation (Max) | 200mV |
| Current Transfer Ratio (Max) | 160% @ 5mA |
| Supplier Device Package | 4-DIP |
| Voltage - Output (Max) | 70V |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 50 mA |
