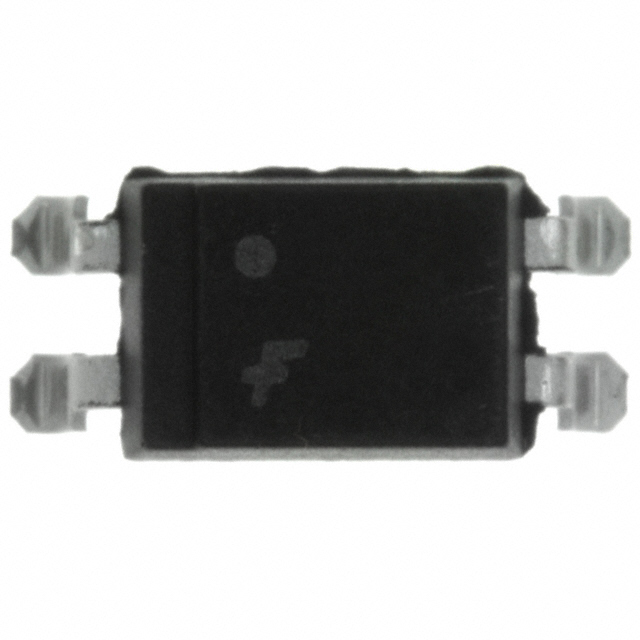

FOD814A3S

OPTOISOLATOR 5KV TRANSISTOR 4SMD

Manufacturer: onsemi

Categories: Transistor, Photovoltaic Output Optoisolators

Quality Control: Learn More

The onsemi FOD814A3S is a single-channel optoisolator featuring a transistor output. Designed for surface mounting in a 4-SMD, Gull Wing package, this component provides 5000Vrms of isolation. It supports both AC and DC input types and delivers an output current capability of 50mA. The current transfer ratio ranges from a minimum of 50% to a maximum of 150% at 1mA input. Typical forward voltage is 1.2V with a maximum forward current of 50mA. The device exhibits a Vce Saturation of 200mV maximum and typical rise and fall times of 4µs and 3µs, respectively. The operating temperature range is -55°C to 105°C. This optoisolator is suitable for applications in industrial automation, power supplies, and motor control systems.

Additional Information

Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:
Technical Details:
PackagingBox
Package / Case4-SMD, Gull Wing
Output TypeTransistor
Mounting TypeSurface Mount
Operating Temperature-55°C ~ 105°C
Voltage - Forward (Vf) (Typ)1.2V
Input TypeAC, DC
Current - Output / Channel50mA
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)50% @ 1mA
Vce Saturation (Max)200mV
Current Transfer Ratio (Max)150% @ 1mA
Supplier Device Package4-SMD
Voltage - Output (Max)70V
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)4µs, 3µs
Number of Channels1
Current - DC Forward (If) (Max)50 mA
