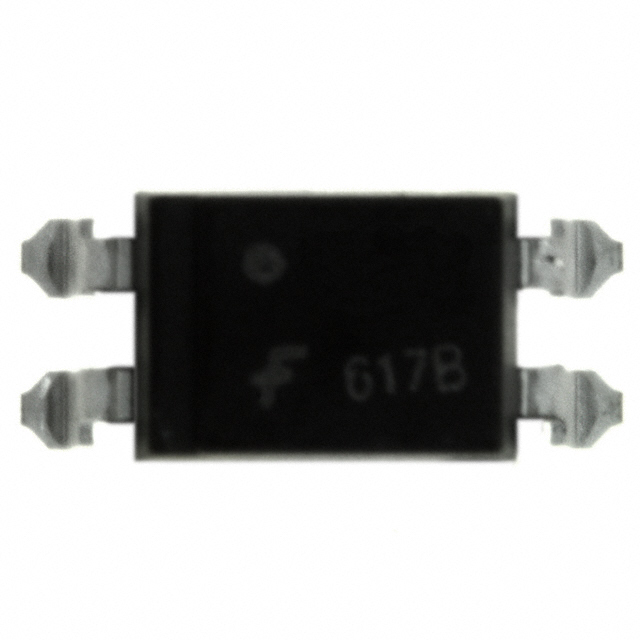

FOD617B3SD
OPTOISOLATOR 5KV TRANSISTOR 4SMDManufacturer: onsemi
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
The onsemi FOD617B3SD is a single-channel optoisolator featuring a transistor output. This component provides 5000Vrms of isolation, crucial for applications requiring robust electrical separation. It operates with a DC input and delivers a maximum output current of 50mA per channel. The current transfer ratio (CTR) ranges from a minimum of 63% to a maximum of 125% at 10mA forward current. Key electrical parameters include a typical forward voltage (Vf) of 1.2V and a maximum collector-emitter saturation voltage (Vce(sat)) of 400mV. The typical rise and fall times are 4µs and 3µs, respectively. This device is housed in a 4-SMD, Gull Wing package for surface mounting and is supplied on tape and reel. The operating temperature range is -55°C to 110°C. This optoisolator is commonly utilized in industrial automation, power supplies, and telecommunications equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 110°C |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Input Type | DC |
| Current - Output / Channel | 50mA |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 63% @ 10mA |
| Vce Saturation (Max) | 400mV |
| Current Transfer Ratio (Max) | 125% @ 10mA |
| Supplier Device Package | 4-SMD |
| Voltage - Output (Max) | 70V |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 50 mA |
