FOD617AS

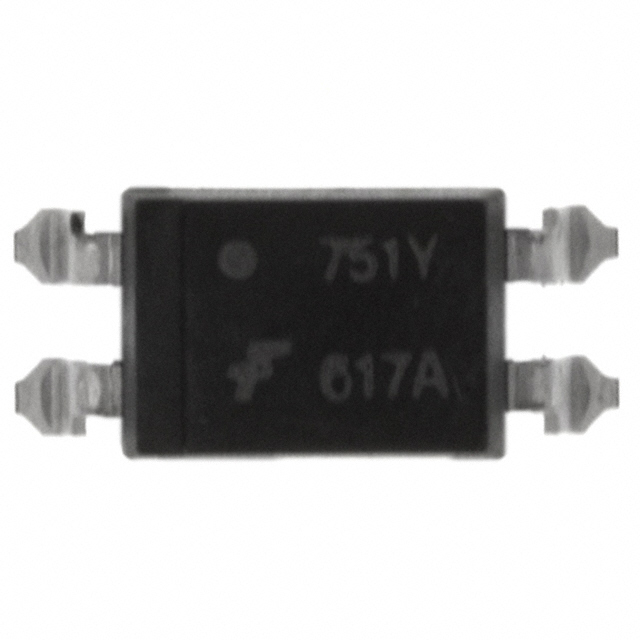

OPTOISOLATOR 5KV TRANSISTOR 4SMDManufacturer: onsemi
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
The onsemi FOD617AS is a single-channel optoisolator featuring a transistor output. This device provides 5000Vrms isolation and is designed for surface mount applications in a 4-SMD Gull Wing package. Key specifications include a maximum DC forward current of 50mA, an output current capability of 50mA, and a voltage isolation of 5000Vrms. The current transfer ratio ranges from a minimum of 40% at 10mA input to a maximum of 80% at 10mA input. It operates within a temperature range of -55°C to 110°C, with typical rise and fall times of 4µs and 3µs respectively. The Vce saturation is a maximum of 400mV, and the typical forward voltage is 1.35V. This component is utilized in industrial automation, power supplies, and automotive applications where robust electrical isolation is critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SMD, Gull Wing |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 110°C |
| Voltage - Forward (Vf) (Typ) | 1.35V |
| Input Type | DC |
| Current - Output / Channel | 50mA |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 40% @ 10mA |
| Vce Saturation (Max) | 400mV |
| Current Transfer Ratio (Max) | 80% @ 10mA |
| Supplier Device Package | 4-SMD |
| Voltage - Output (Max) | 70V |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 50 mA |
