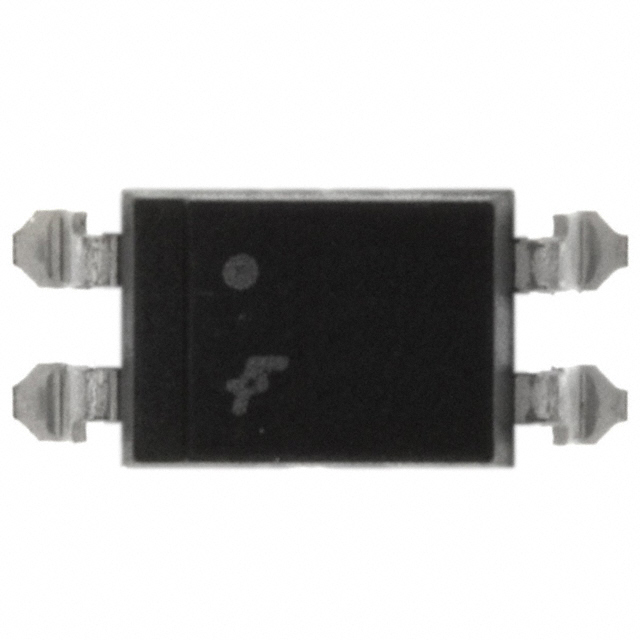

FOD617A3S
OPTOISOLATOR 5KV TRANSISTOR 4SMDManufacturer: onsemi
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
The onsemi FOD617A3S is a single-channel optoisolator featuring a transistor output. This component provides 5000Vrms of isolation and is housed in a 4-SMD, Gull Wing package suitable for surface mounting. It operates with a DC input and supports an output current of up to 50mA per channel. The current transfer ratio (CTR) ranges from a minimum of 40% at 10mA to a maximum of 80% at 10mA. Key electrical parameters include a typical forward voltage (Vf) of 1.35V and a maximum collector-emitter saturation voltage (Vce(sat)) of 400mV. With typical rise and fall times of 4µs and 3µs respectively, the FOD617A3S is utilized in applications requiring robust signal isolation, such as industrial automation and power supply control. It is supplied in Bulk packaging and can operate within a temperature range of -55°C to 110°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SMD, Gull Wing |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 110°C |
| Voltage - Forward (Vf) (Typ) | 1.35V |
| Input Type | DC |
| Current - Output / Channel | 50mA |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 40% @ 10mA |
| Vce Saturation (Max) | 400mV |
| Current Transfer Ratio (Max) | 80% @ 10mA |
| Supplier Device Package | 4-SMD |
| Voltage - Output (Max) | 70V |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 50 mA |
