QVE00118
SENSOR OPT SLOT PHOTOTRANS MODULManufacturer: onsemi
Categories: Transistor Output
Quality Control: Learn More
onsemi's QVE00118 is a through-beam optical sensor featuring a phototransistor output. This module, designed for PC pin mounting and a slot-type package, offers a sensing distance of 0.197 inches (5mm). Key specifications include a maximum collector current (Ic) of 20 mA and a maximum DC forward current (If) of 60 mA. The component operates within a temperature range of -55°C to 100°C, with a collector-emitter breakdown voltage of 30 V. Its response time is characterized by 4µs for both turn-on and turn-off. The QVE00118 is suitable for applications in industrial automation, object detection, and position sensing. It is supplied in tube packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Module, PC Pins, Slot Type |
| Sensing Distance | 0.197"" (5mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 100°C |
| Output Configuration | Phototransistor |
| Response Time | 4µs, 4µs |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 60 mA |
Request a Quote
Clients Also Buy
QVB11334
SENSOR OPT SLOT PHOTOTRANS MODUL
QVE00034
SENSOR OPT SLOT PHOTOTRANS MODUL

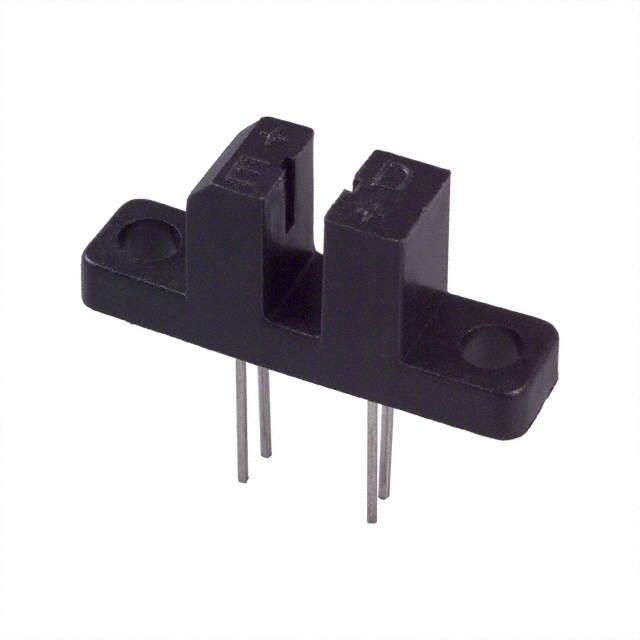

H21B6
