QVE00039
SENSOR OPT SLOT PHOTOTRANS MODULManufacturer: onsemi
Categories: Transistor Output
Quality Control: Learn More

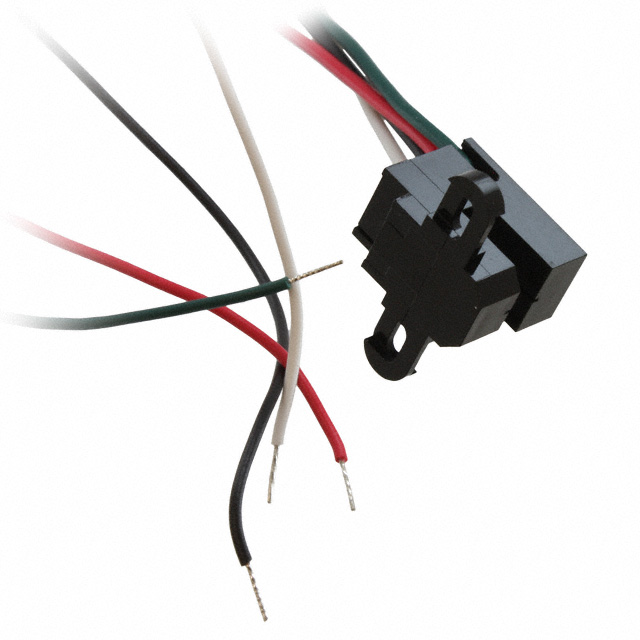

The onsemi QVE00039 is a through-beam optical sensor featuring a phototransistor output. This pre-wired module offers a sensing distance of 0.095 inches (2.41mm) and operates with a maximum DC forward current (If) of 50 mA. Its output configuration utilizes a phototransistor, and the device is rated for a collector emitter breakdown voltage (VCEO) of up to 30V. The QVE00039 has a response time of 8µs and 50µs. This component is suitable for chassis mounting and is supplied in tube packaging. It is designed for operation within an ambient temperature range of -40°C to 85°C. Applications for this sensor can be found in industries such as industrial automation, consumer electronics, and automotive systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Module, Pre-Wired |
| Sensing Distance | 0.095"" (2.41mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Phototransistor |
| Response Time | 8µs, 50µs |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
