QVB11134
SENSOR OPT SLOT PHOTOTRANS MODULManufacturer: onsemi
Categories: Transistor Output
Quality Control: Learn More

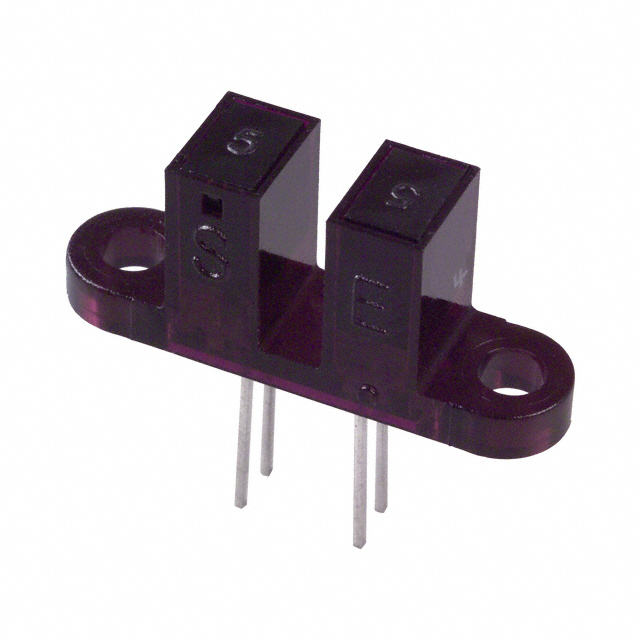

The onsemi QVB series QVB11134 is a through-beam optical sensor module featuring a phototransistor output. This component is designed with PC pins for through-hole mounting and has a flange for secure installation. The sensing distance is specified at 0.125 inches (3.18mm). Key electrical characteristics include a maximum collector current (Ic) of 40 mA and a maximum DC forward current (If) of 50 mA. The maximum collector-emitter breakdown voltage is 30 V. Operating temperature range is from -40°C to 85°C. This device is commonly utilized in industrial automation, consumer electronics, and automotive applications where precise object detection and positioning are critical. The module is supplied in tube packaging.
Additional Information
Series: QVBRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Module, PC Pins, Slot Type |
| Sensing Distance | 0.125"" (3.18mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Through Hole, Flange |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Phototransistor |
| Response Time | - |
| Current - Collector (Ic) (Max) | 40 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
