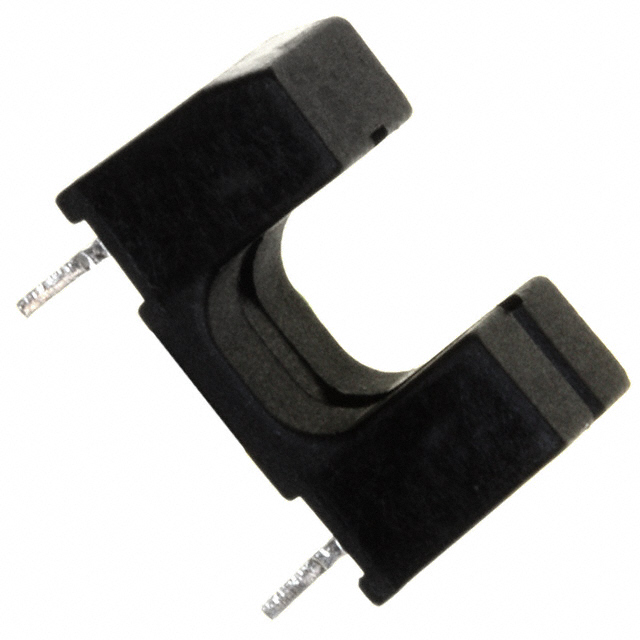

MOC70P1
SENSOR OPT SLOT PHOTOTRAN PC PINManufacturer: onsemi
Categories: Transistor Output
Quality Control: Learn More
The onsemi MOC70P1 is a through-beam optical sensor featuring a phototransistor output. This component, with its 0.200" (5.08mm) sensing distance, is housed in a PC pin package designed for through-hole mounting. Key specifications include a maximum collector current (Ic) of 20 mA and a maximum DC forward current (If) of 50 mA. The collector emitter breakdown voltage is rated at 30 V. With response times of 20µs and 80µs, the MOC70P1 is suitable for applications requiring precise optical detection. Its operating temperature range of -55°C to 100°C ensures reliability in diverse environmental conditions. This component is commonly utilized in industrial automation, consumer electronics, and automotive systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Slotted, PC Pins |
| Sensing Distance | 0.200"" (5.08mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Through Hole, Flange |
| Operating Temperature | -55°C ~ 100°C |
| Output Configuration | Phototransistor |
| Response Time | 20µs, 80µs |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
