CAT812STBI-GT3
IC SUPERVISOR 1 CHANNEL SOT143Manufacturer: onsemi
Categories: Supervisors
Quality Control: Learn More

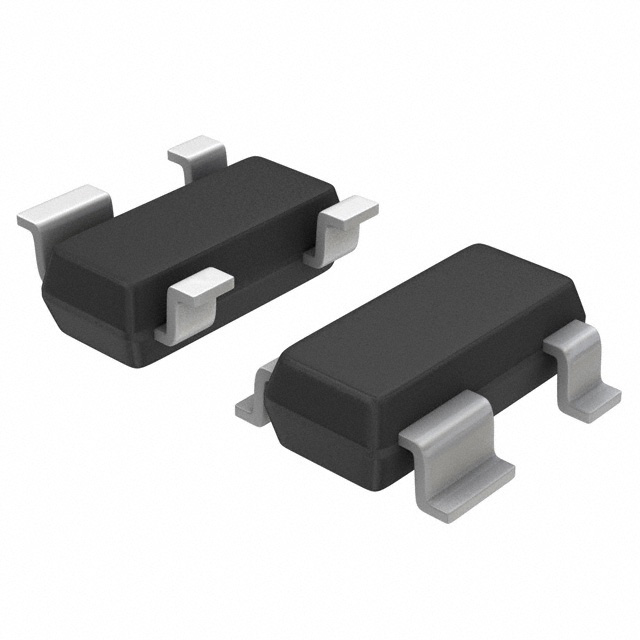

onsemi CAT812STBI-GT3 is a single-channel supervisor IC designed for robust system monitoring. This component features a push-pull, totem pole output stage, facilitating efficient reset signal generation. The CAT812STBI-GT3 operates with a single voltage threshold of 2.93V and provides an active-high reset output with a minimum timeout of 140ms. Packaged in a SOT-143-4 (TO-253-4, TO-253AA) surface-mount configuration, it is supplied on tape and reel. This device is suitable for applications requiring reliable power-on reset and system supervision, including industrial control systems and consumer electronics. The operating temperature range is from -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-253-4, TO-253AA |
| Mounting Type | Surface Mount |
| Output | Push-Pull, Totem Pole |
| Type | Simple Reset/Power-On Reset |
| Reset | Active High |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 140ms Minimum |
| Voltage - Threshold | 2.93V |
| Supplier Device Package | SOT-143-4 |
| Programmable | Not Verified |
