CAT1024ZD4I-42T3
IC SUPERVISOR MEMORY 8TDFNManufacturer: onsemi
Categories: Supervisors
Quality Control: Learn More

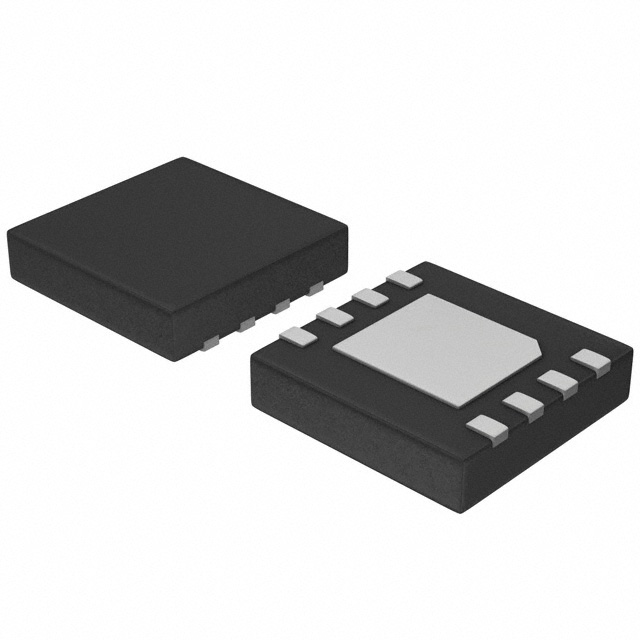

onsemi CAT1024ZD4I-42T3 is an 8-TDFN (3x3) packaged supervisory circuit. This component features a single voltage monitoring channel with an active-low reset output. The reset timeout is a minimum of 130ms, and the voltage threshold is set at 4.25V. The output configuration is open drain or open collector, offering flexibility in system design. Designed for surface mounting, this device operates within a temperature range of -40°C to 85°C. The CAT1024ZD4I-42T3 is suitable for applications requiring precise power-on reset and memory supervision, commonly found in industrial control systems and consumer electronics. It is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Open Drain or Open Collector |
| Type | Simple Reset/Power-On Reset |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 85°C |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 130ms Minimum |
| Voltage - Threshold | 4.25V |
| Supplier Device Package | 8-TDFN (3x3) |
| Programmable | Not Verified |
