FAN6390MPX
USB-PD3.0 STATE MACHINE DManufacturer: onsemi
Categories: Specialized
Quality Control: Learn More

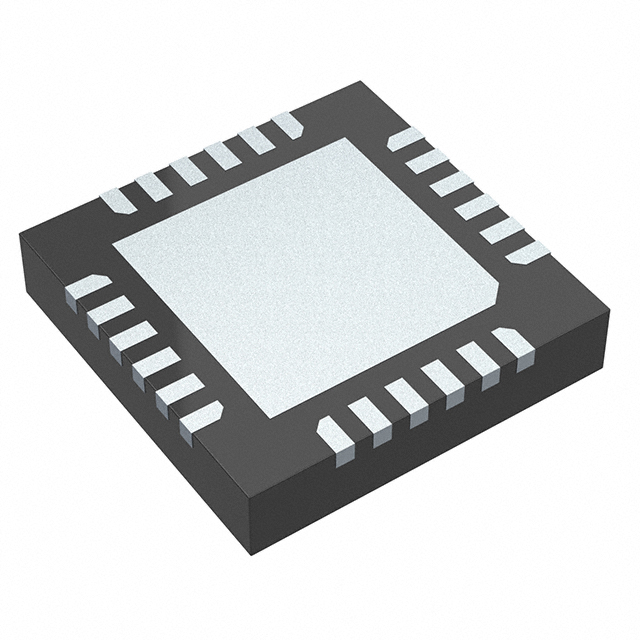

The onsemi FAN6390MPX is a USB Type-C Power Delivery (PD) 3.0 compliant PMIC designed for advanced power management in USB-C applications. This surface-mount component, housed in a 24-WFQFN (4x4) package with an exposed pad, integrates a state machine and control logic essential for USB-C Power Delivery negotiation and power path management. With a supply voltage range of up to 20V and a low supply current of 10mA, it offers efficient operation. The FAN6390MPX is commonly utilized in consumer electronics, industrial control systems, and automotive applications where robust and compliant USB-C power delivery is critical. It is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 20V |
| Applications | USB Type C |
| Current - Supply | 10mA |
| Supplier Device Package | 24-WQFN (4x4) |
