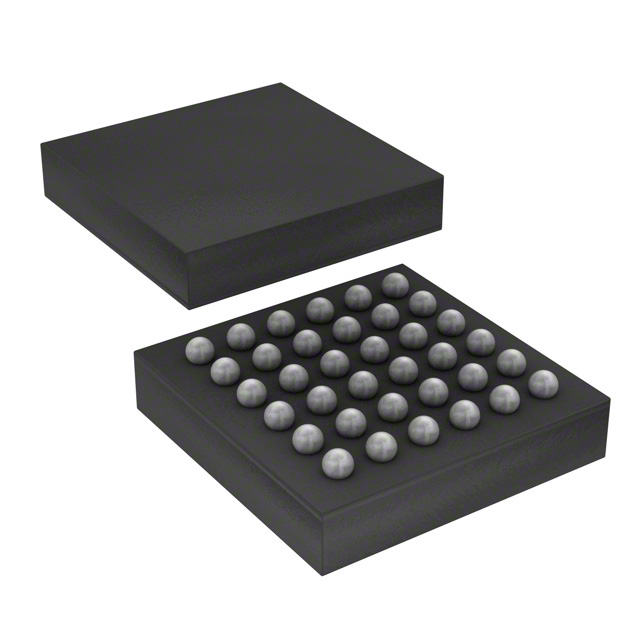

NL3S644BFCTAG
IC DEMUX 2:1 4LINE MIPI 36WLCSPManufacturer: onsemi
Categories: Special Purpose
Quality Control: Learn More
onsemi NL3S644BFCTAG is a high-performance MIPI switch IC designed for 2:1 multiplexing/demultiplexing applications. This 4-channel device features a 36-WLCSP package (2.34x2.34) for compact designs, suitable for surface mount assembly. Operating with a single supply voltage ranging from 1.65V to 4.5V, it offers a -3dB bandwidth of 1.05GHz, enabling efficient data routing in demanding systems. The SPDT switch configuration and a maximum on-state resistance of 9 Ohms ensure signal integrity. Applications for this component are prevalent in mobile devices, automotive electronics, and other systems utilizing MIPI interfaces. The NL3S644BFCTAG is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Operating Temperature | - |
| Applications | MIPI |
| On-State Resistance (Max) | 9Ohm |
| -3db Bandwidth | 1.05GHz |
| Supplier Device Package | 36-WLCSP (2.34x2.34) |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Channels | 4 |
Request a Quote
