LC78212-E
IC ANALOG FUNCTION SWITCH 30SDIPManufacturer: onsemi
Categories: Special Purpose
Quality Control: Learn More

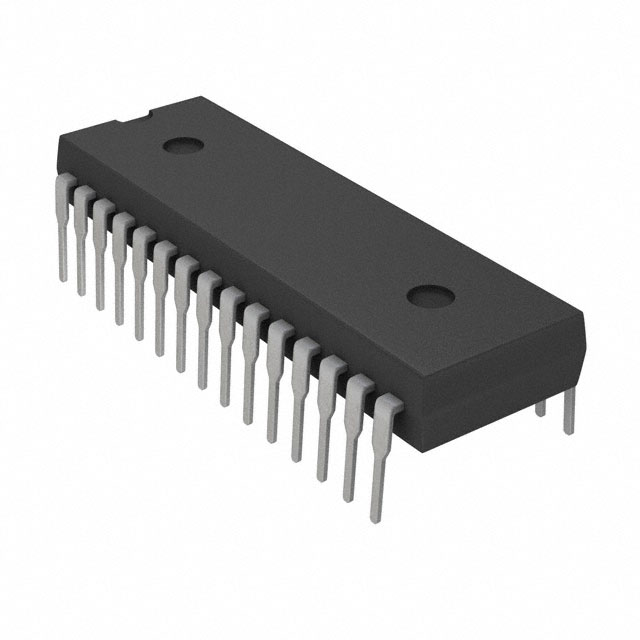

The onsemi LC78212-E is a single-channel analog functional switch housed in a 30-SDIP (0.400", 10.16mm) package. This device is designed for through-hole mounting and features a maximum on-state resistance of 150 Ohms. It operates with a single supply voltage ranging from 6V to 18.5V and is suitable for applications within a temperature range of -30°C to 75°C. The LC78212-E is commonly utilized in various analog signal routing and switching applications, including automotive and industrial control systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 30-SDIP (0.400"", 10.16mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -30°C ~ 75°C (TA) |
| Applications | Analog |
| On-State Resistance (Max) | 150Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 30-PDIP |
| Voltage - Supply, Single (V+) | 6V ~ 18.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | - |
| Number of Channels | 1 |
