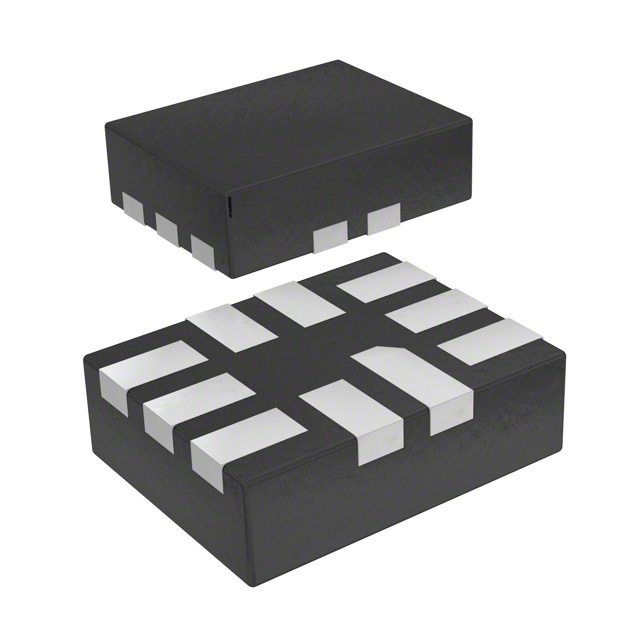

FSUSB104UMX
IC USB SWITCH DUAL DPDT 10UMLPManufacturer: onsemi
Categories: Special Purpose
Quality Control: Learn More
The onsemi FSUSB104UMX is a single-channel, DPDT USB switch IC designed for high-speed data transfer. Featuring a 720MHz -3dB bandwidth, this component supports USB 2.0 specifications and operates bi-directionally. The device is housed in a compact 10-UMLP (1.8x1.4) package and is available on tape and reel for efficient surface mounting. With an on-state resistance of 6.5 Ohms maximum, it is suitable for applications requiring low signal loss. The FSUSB104UMX operates from a single supply voltage range of 3V to 4.4V and is specified for operation across an industrial temperature range of -40°C to 85°C. This USB switch finds application in consumer electronics and computing systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bi-Directional, USB 2.0 |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-UFQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | USB |
| On-State Resistance (Max) | 6.5Ohm |
| -3db Bandwidth | 720MHz |
| Supplier Device Package | 10-UMLP (1.8x1.4) |
| Voltage - Supply, Single (V+) | 3V ~ 4.4V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | - |
| Number of Channels | 1 |
