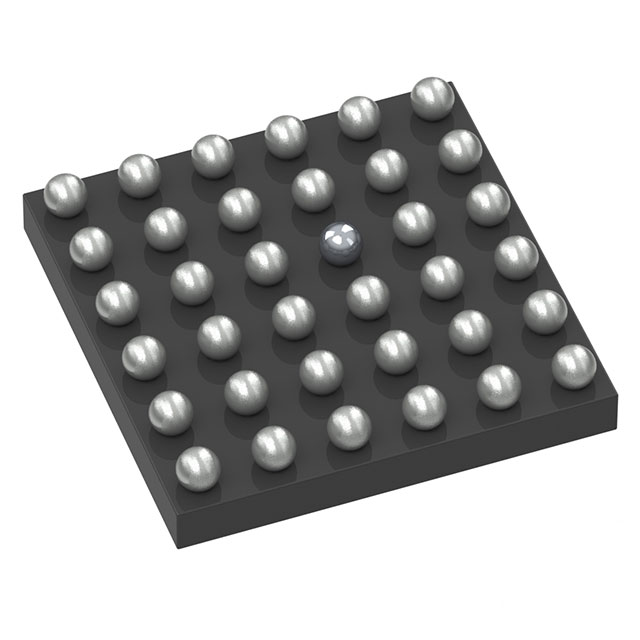

FSA636UCX
ULTRA SMALL, LOW POWER, 4-DATA LManufacturer: onsemi
Categories: Special Purpose
Quality Control: Learn More
The onsemi FSA636UCX is a 10-channel, 2:1 multiplexer/demultiplexer switch IC designed for high-speed data transmission. This SPDT (Single Pole Double Throw) switch features a 4GHz -3dB bandwidth, making it suitable for demanding applications such as DisplayPort, PCIe, Telecommunications, and USB interfaces. The device operates from a single supply voltage of 1.5V to 5V and offers a low on-state resistance of a maximum of 9 Ohms. Its ultra-small, 36-WLCSP (2.06x2.06) package and surface mount capability facilitate compact design implementations. The "Break-Before-Make" feature ensures signal integrity during switching operations. This component is further characterized by its low power consumption and an operating temperature range of -40°C to 85°C. It is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Break-Before-Make |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-XFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | DisplayPort, PCIe, Telecommunications, USB |
| On-State Resistance (Max) | 9Ohm |
| -3db Bandwidth | 4GHz |
| Supplier Device Package | 36-WLCSP (2.06x2.06) |
| Voltage - Supply, Single (V+) | 1.5V ~ 5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Channels | 10 |
