HSR312S
SSR RELAY SPST-NO 190MA 0-250VManufacturer: onsemi
Categories: Solid State Relays (SSR)
Quality Control: Learn More
The onsemi HSR312S is a Solid State Relay (SSR) featuring a Single Pole Single Throw Normally Open (SPST-NO) configuration, identified as the HSR312 series. This device is designed for surface mounting within a 6-SMD package, measuring 0.300 inches (7.62mm) with gull wing termination. It supports both AC and DC output types, capable of switching loads from 0V up to 250V with a maximum load current of 190mA. The on-state resistance is rated at a maximum of 10 Ohms. Input voltage requirements are 1.6VDC. This component is suitable for applications requiring reliable switching in industrial automation, medical equipment, and measurement instrumentation. The HSR312S holds CSA and UL approval.
Additional Information
Series: HSR312RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 6-SMD (0.300"", 7.62mm) |
| Output Type | AC, DC |
| Mounting Type | Surface Mount |
| Voltage - Input | 1.6VDC |
| Circuit | SPST-NO (1 Form A) |
| Operating Temperature | -40°C ~ 80°C |
| Termination Style | Gull Wing |
| Load Current | 190 mA |
| Approval Agency | CSA, UL |
| Supplier Device Package | 6-SMD |
| Grade | - |
| Voltage - Load | 0 V ~ 250 V |
| On-State Resistance (Max) | 10 Ohms |
| Qualification | - |
Request a Quote
Clients Also Buy

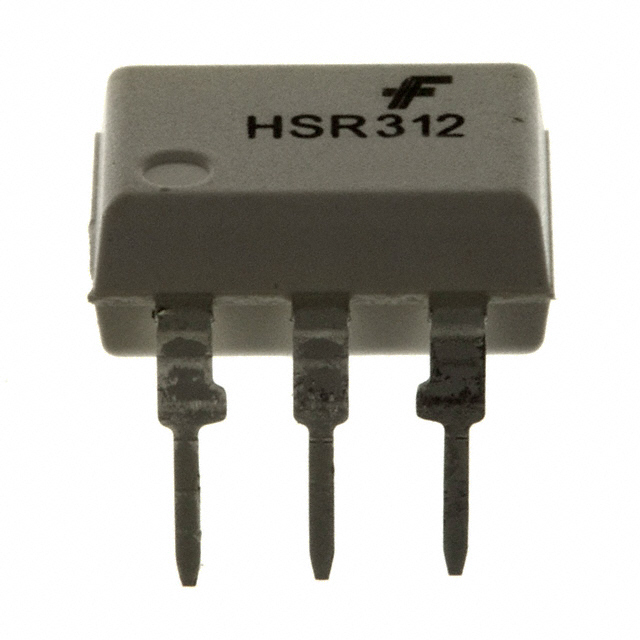

HSR312
SSR RELAY SPST-NO 190MA 0-250V
HSR312SR2
SSR RELAY SPST-NO 190MA 0-250V

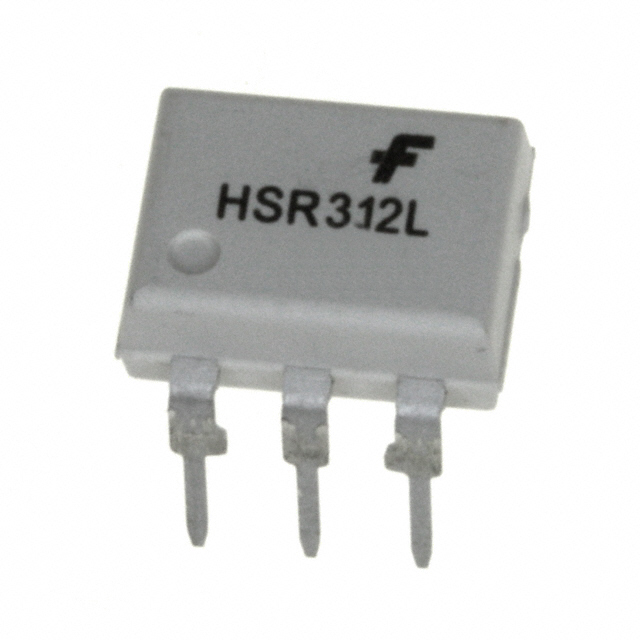

HSR312L
