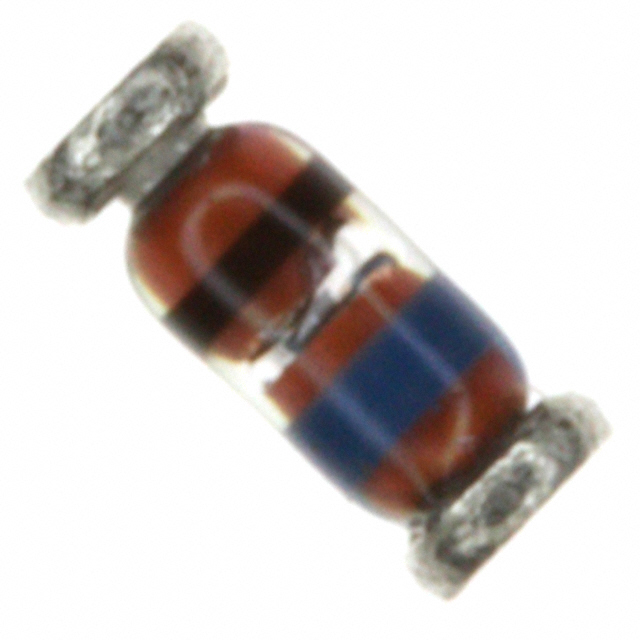

FLZ9V1C
DIODE ZENER 9.1V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi FLZ9V1C Zener Diode, offering a nominal breakdown voltage of 9.1V with a ±3% tolerance. This component features a maximum power dissipation of 500 mW and a low reverse leakage current of 300 nA at 6V. With a low impedance of 6.6 Ohms (Zzt), it is suitable for applications requiring precise voltage regulation. The device is housed in a compact SOD-80 (DO-213AC, MINI-MELF) surface-mount package, facilitating integration into dense circuit designs. Operating across a wide temperature range of -65°C to 175°C, the FLZ9V1C is utilized in various industrial and consumer electronics, including power supplies and voltage clamping circuits. The forward voltage at 200 mA is specified at a maximum of 1.2V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Cut Tape (CT) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 9.1 V |
| Impedance (Max) (Zzt) | 6.6 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 300 nA @ 6 V |
