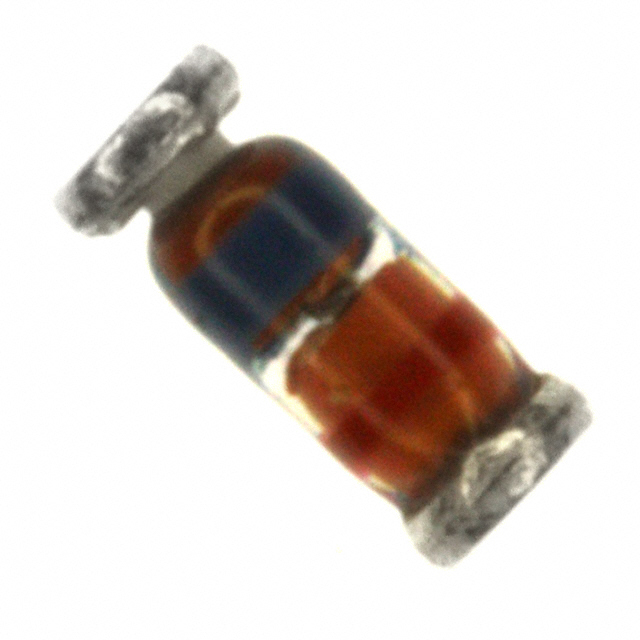

FLZ9V1A
DIODE ZENER 8.5V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
The onsemi FLZ9V1A is a Zener diode designed for precise voltage regulation. Featuring a nominal Zener voltage of 8.5 V and a ±3% tolerance, this component offers stable performance. It is rated for a maximum power dissipation of 500 mW and operates within a wide temperature range of -65°C to 175°C. With a reverse leakage current of 300 nA at 6 V and a Zener impedance of 6.6 Ohms, it is suitable for applications requiring minimal leakage and consistent regulation. The FLZ9V1A is housed in a compact SOD-80 (DO-213AC, MINI-MELF) package, ideal for surface mount assembly. This device finds application in automotive, industrial, and consumer electronics sectors where reliable voltage clamping and regulation are critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 8.5 V |
| Impedance (Max) (Zzt) | 6.6 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 300 nA @ 6 V |
