FLZ8V2C
DIODE ZENER 8.2V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More

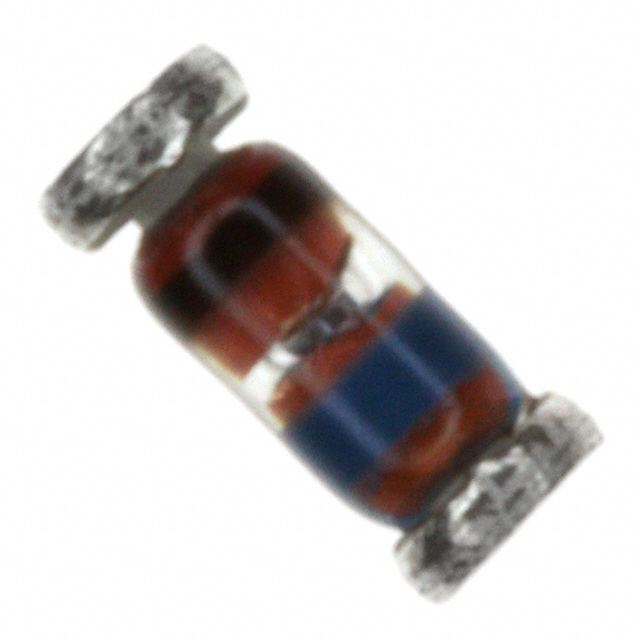

onsemi's FLZ8V2C Zener diode offers 8.2V nominal voltage with a ±3% tolerance. This 500mW device features a low reverse leakage of 300 nA at 5V and a maximum impedance of 6.6 Ohms. Designed for surface mount applications, it is housed in a compact SOD-80 (DO-213AC, MINI-MELF) package, suitable for operation across a wide temperature range of -65°C to 175°C. The forward voltage (Vf) is a maximum of 1.2V at 200mA. This component finds application in voltage regulation and transient suppression across various electronics manufacturing sectors. The device is supplied in Cut Tape (CT) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Cut Tape (CT) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 8.2 V |
| Impedance (Max) (Zzt) | 6.6 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 300 nA @ 5 V |
