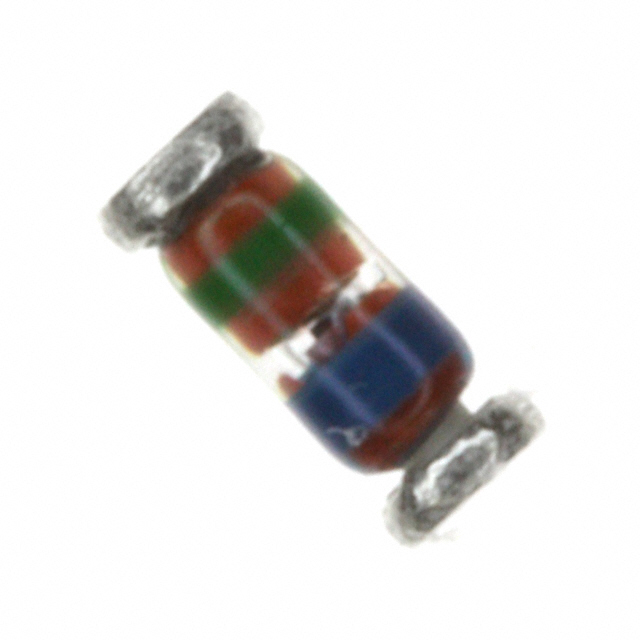

FLZ8V2B
DIODE ZENER 8V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi FLZ8V2B is an 8V Zener diode with a ±3% tolerance, rated for 500 mW power dissipation. This component features a low reverse leakage of 300 nA at 5V and a maximum impedance of 6.6 Ohms. It is available in a compact SOD-80 (DO-213AC, MINI-MELF) surface mount package, supplied on tape and reel. The forward voltage is a maximum of 1.2V at 200 mA. Operating temperature ranges from -65°C to 175°C. This device is commonly utilized in voltage regulation and transient suppression applications across various industries including automotive, industrial, and consumer electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 8 V |
| Impedance (Max) (Zzt) | 6.6 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 300 nA @ 5 V |
