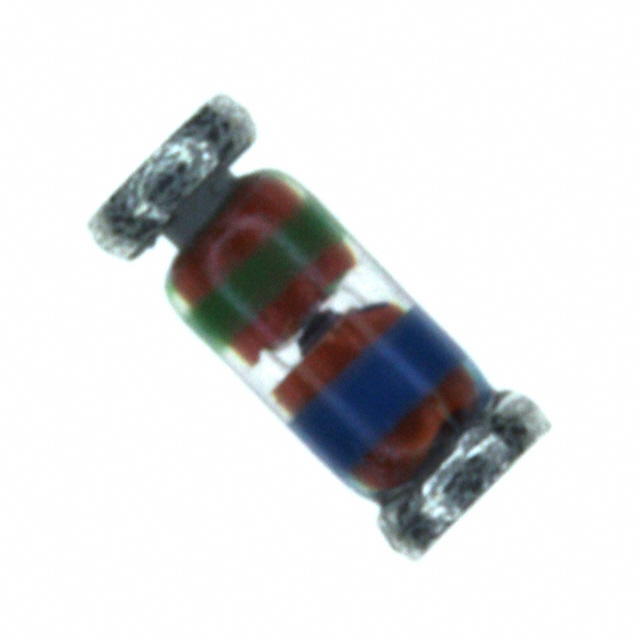

FLZ6V8B
DIODE ZENER 6.7V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
The onsemi FLZ6V8B is a Zener diode designed for precise voltage regulation. This component features a nominal Zener voltage (Vz) of 6.7 V with a tight tolerance of ±3%. It offers a maximum power dissipation of 500 mW, making it suitable for applications requiring controlled power handling. The diode exhibits a low reverse leakage current of 1.1 µA at 3.5 V and a maximum Zener impedance (Zzt) of 6.6 Ohms, ensuring stable performance.
Encased in a compact SOD-80 (DO-213AC, MINI-MELF) surface-mount package, the FLZ6V8B is supplied on tape and reel for efficient automated assembly. Its wide operating temperature range of -65°C to 175°C makes it robust for various environmental conditions. This device is commonly utilized in automotive, industrial control, and consumer electronics for voltage stabilization and overvoltage protection circuits. The forward voltage (Vf) is rated at a maximum of 1.2 V at 200 mA.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 6.7 V |
| Impedance (Max) (Zzt) | 6.6 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 1.1 µA @ 3.5 V |
