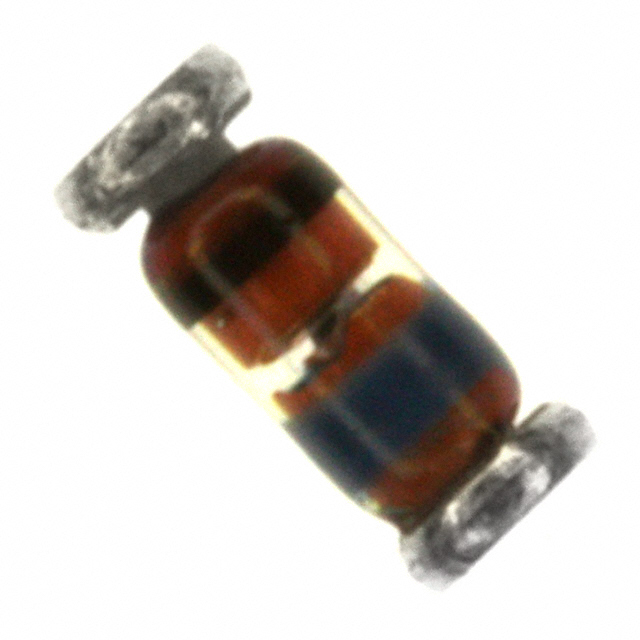

FLZ6V2C
DIODE ZENER 6.3V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi FLZ6V2C, a Zener diode, offers a nominal breakdown voltage of 6.3V with a tight ±3% tolerance. This component is rated for 500 mW maximum power dissipation and features a low reverse leakage current of 3.3 µA at 3V, with a typical Zener impedance of 8.5 Ohms. The FLZ6V2C is housed in a compact SOD-80 (DO-213AC, MINI-MELF) surface-mount package, suitable for applications requiring efficient space utilization. It operates across a wide temperature range from -65°C to 175°C. This device is commonly found in voltage regulation and transient suppression circuits within the consumer electronics and industrial automation sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 6.3 V |
| Impedance (Max) (Zzt) | 8.5 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 3.3 µA @ 3 V |
