FLZ6V2A
DIODE ZENER 5.9V 500MW SOD80Manufacturer: onsemi
Categories: Single Zener Diodes
Quality Control: Learn More
onsemi FLZ6V2A is a Zener diode offering a nominal breakdown voltage of 5.9 V with a tight tolerance of ±3%. This component is rated for a maximum power dissipation of 500 mW and features a low reverse leakage current of 3.3 µA at 3 V. The impedance at the Zener voltage (Zzt) is a maximum of 8.5 Ohms.

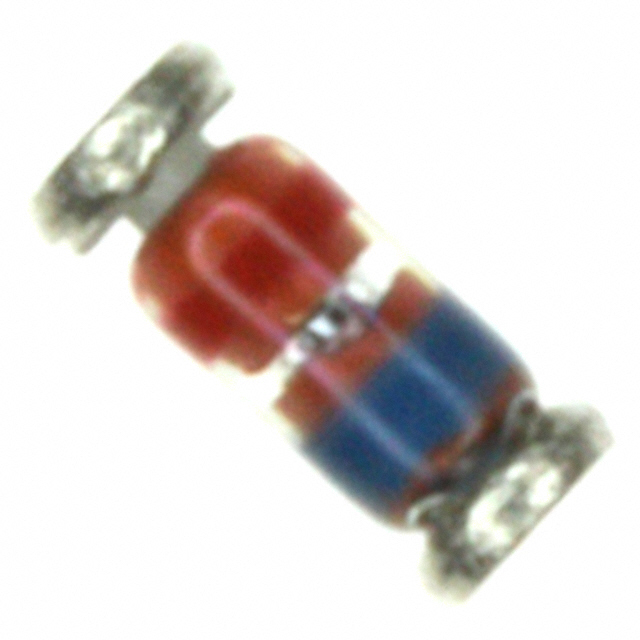

Designed for surface mounting, the FLZ6V2A utilizes the SOD-80 (DO-213AC, MINI-MELF) package, supplied in Tape & Reel. Its operating temperature range extends from -65°C to 175°C, making it suitable for demanding applications. The forward voltage (Vf) is a maximum of 1.2 V at 200 mA. This Zener diode is commonly employed in voltage regulation and transient suppression circuits across various industrial and consumer electronics applications.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 5.9 V |
| Impedance (Max) (Zzt) | 8.5 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 3.3 µA @ 3 V |
